Used7FTP N67 CASE 651G Wheel Loader
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this wheel loader
This FTP N67 FTP N67 is listed by AHS Group at NSW.
AHS Group has not published a price for this wheel loader — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | FTP N67 |
| Model | FTP N67 |
| Condition | Used |
| Name | 651G |
| Maker & Model | FTP N67 |
| No. of cylinders | 6 |
| Displacement (l) | 6.7 |
| Injection | Common Rail Multiple Injection. |
| After Treatment System | HI-eSCR 2 (DOC+SCRoF) |
| Emission level | Compliant with EU Stage V |
| Maximum power | 128 kW (171.7 hp) |
| @ Engine speed (ISO 14396) (rpm) | 1800 |
| Maximum Torque | 730 Nm |
| 4-speed ZF Powershift | with Intelligent Clutch Cut Off (ICCO) |
| Axles oscillation angle (total) (°) | 24 |
| Standard tire’s size | 20.5R25 |
| Service brake | Maintenance free, self-adjusting wet 4-wheel disc brakes. |
| Service brake disc area | 0.39 m²/hub |
| Parking brake disc area | 58 cm² |
| Loader control valve | Bosch-Rexroth, closed center, load sensing/flow sharing. |
| Pump type | Single, variable displacement |
| Max oil flow | 188 l/min |
| @ engine speed | 2,000 rpm |
| Max pressure (bar) | 249 - 255 |
| Fuel tank, usable volume | 248 L |
| DEF (AdBlue®) tank | 41.3 L |
| Engine coolant | 27 L |
| Engine oil | 13 L |
| Hydraulic oil tank | 91 L |
| Total hydraulic system oil | 148 L |
| Front and Rear Axles (l) | 22+22 |
| Transmission oil | 27 L |
| Protection against roll-over (ROPS) | According to ISO EN 13510 std. |
| In the cab - LpA (dB) (ISO 6396-2008) | 68 |
| Outside - LwA (dB) (2000/14/EC) | 104 |
| System voltage | 24 V |
| Batteries (n° x V) | 2 x 12 |
| Alternator - capacity | 140 A |
| Location | NSW |
| Category | Loaders |

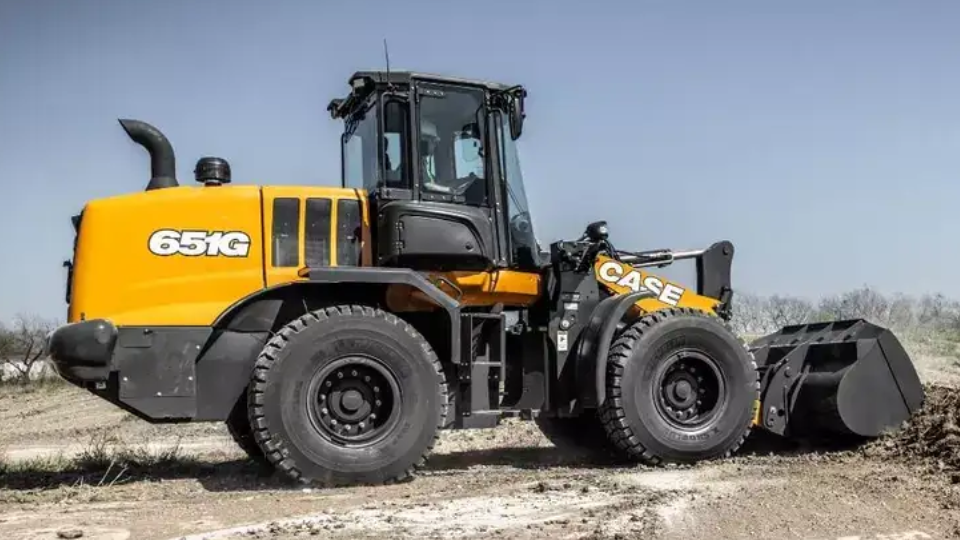

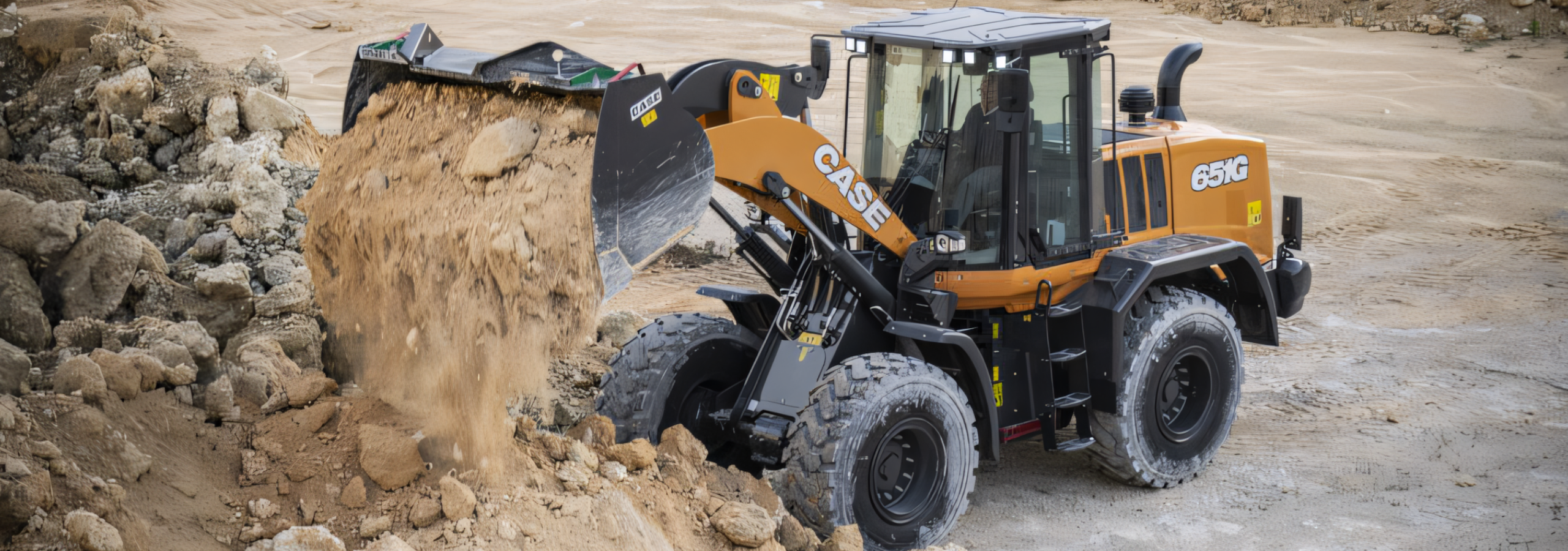

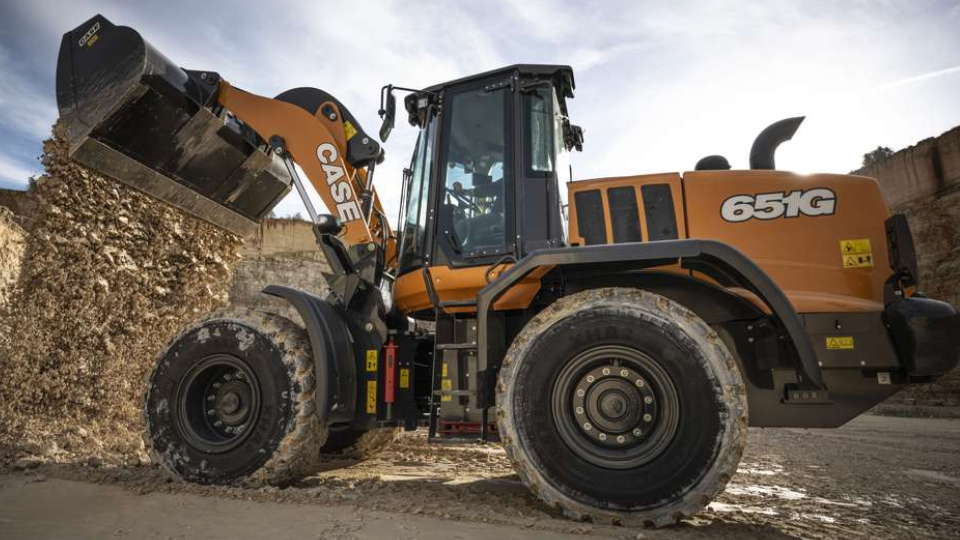

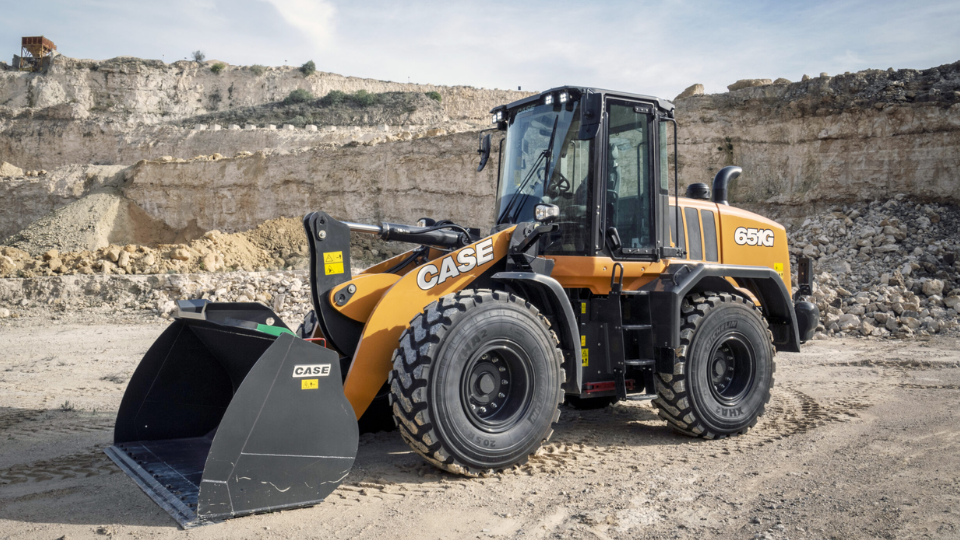

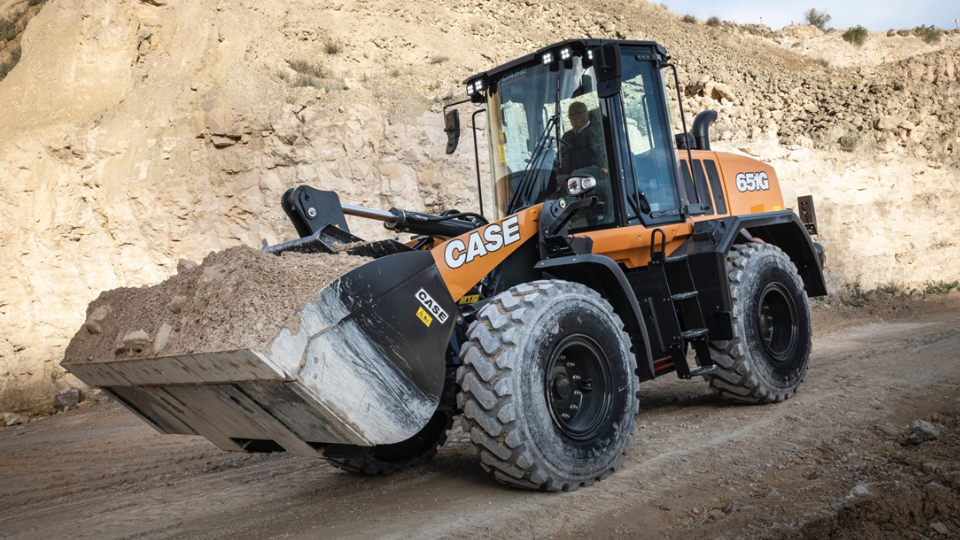

The CASE 651G wheel loader delivers strong work output, efficient power use, clear operator visibility and reliable stability, making it a dependable choice for civil, quarry and l… Full description on the dealer's site →
