Used2Wheel Loader R540
AHS Group·NSW
3 photos supplied by AHS Group and displayed from their website. See the original listing →
About this wheel loader
This Wheel Kubota V2607-CE-E5-WL is listed by AHS Group at NSW.
As listed, it has a hydrostatic transmission and a close configuration.
AHS Group has not published a price for this wheel loader — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Wheel |
| Model | Kubota V2607-CE-E5-WL |
| Condition | Used |
| Name | R540 - Canopy |
| Engine Type | Tier 4 Final |
| Fuel Type | Diesel |
| Cylinders | 4 |
| Engine Model | Kubota V2607-CE-E5-WL |
| Engine Net | 47.9 HP |
| Engine Gross | 51 HP |
| Displacement | 2,615 cc |
| Rated Speed | 2,615 rpm |
| Transmission | Hydrostatic |
| Brakes | Wet Disc |
| Aux Hydraulic Flow | 54 l/min |
| Aux Hydraulic Pressure | 18.5 psi |
| Tipping Load Straight With Bucket | 3,280 kg |
| Tipping Load Straight With Pallet Forks | 2,550 kg |
| Tipping Load Full Turn With Bucket | 2,880 kg |
| ROC - 50% Tipping Load With Bucket | 1,440 kg |
| Low | 0 km/h |
| High | 20 km/h |
| Length | 5,895 mm |
| Width w/o Bucket | 1,680 mm |
| Height | 2,460 mm |
| Operating Weight - Canopy | 4,355 kg |
| Operating Weight - Cab | N/A |
| Fuel Reservoir | 70 l |
| Hydraulic System | 55 l |
| Hydraulic Tank | 39 l |
| Standard Bucket Capacity | 0.68 m3 |
| Breakout Force - Bucket | 3,712 kgf |
| Lifting Capacity At Ground Level | 3,069 kgf |
| Loader Raise Time | 6.5 sec |
| Loader Lower Time | 4.5 sec |
| Ground Clearance | 330 mm |
| Wheelbase | 2,000 mm |
| Tread | 1,355 mm |
| Turning Radius Track Circle | 3,440 mm |
| Bucket Width | 1,820 mm |
| Height To Hinge Pin | 3,230 mm |
| Dump Clearance | 2,525 mm |
| Reach Fully Raised | 730 mm |
| Digging Depth | 110 mm |
| Dump Angle Fully Raised | 45 degree |
| Tilt Back Angle At Travelling Position | 50 degree |
| Articulation Angle | 40 degree |
| Pallet Fork Length | 1,200 mm |
| Overall Length With Forks | 5,895 mm |
| Height Of Forks At Max. Reach | 1,370 mm |
| Height Of Forks At Max. Height | 3,030 mm |
| Reach At Ground Level | 810 mm |
| Max. Reach | 1,255 mm |
| Reach At Max. Height | 500 mm |
| Canopy | done |
| Cab | close |
| Location | NSW |
| Category | Loaders |

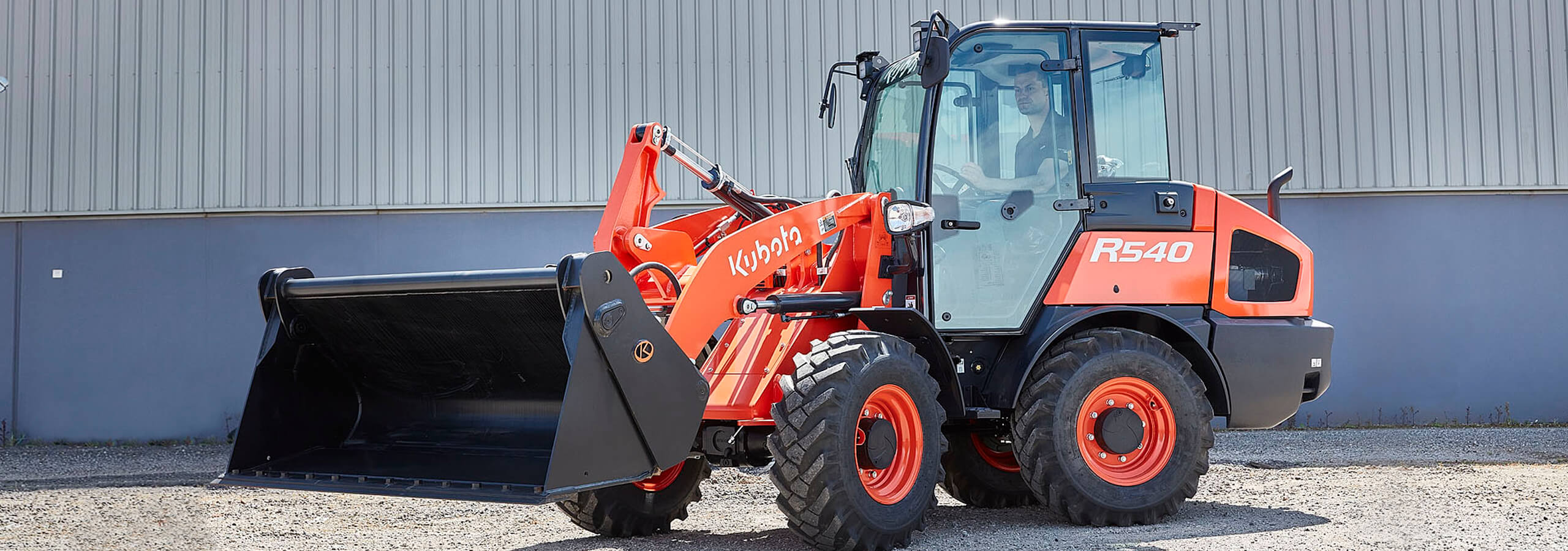

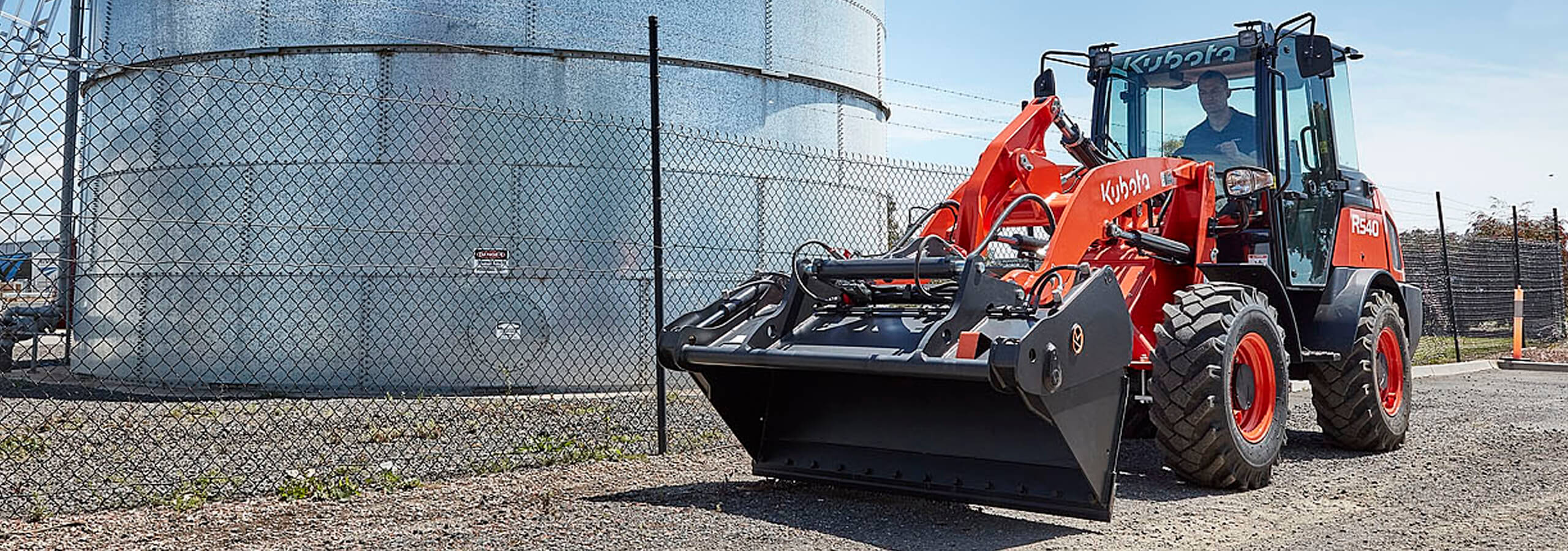

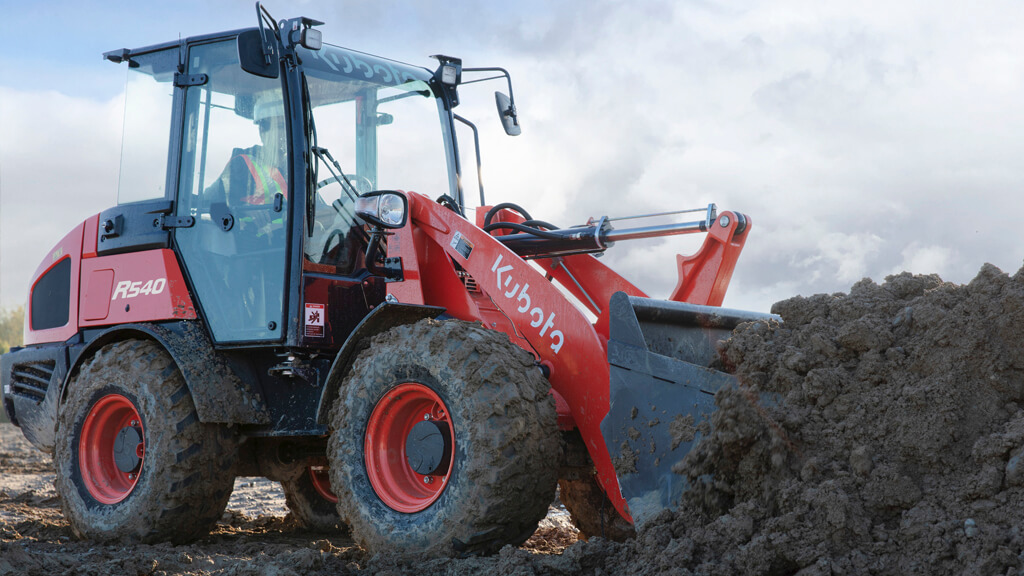

The R540 is designed to handle the most challenging jobs with a tough and reliable Kubota engine, excellent breakout force and superior maneuverability. The newly designed cab and… Full description on the dealer's site →
