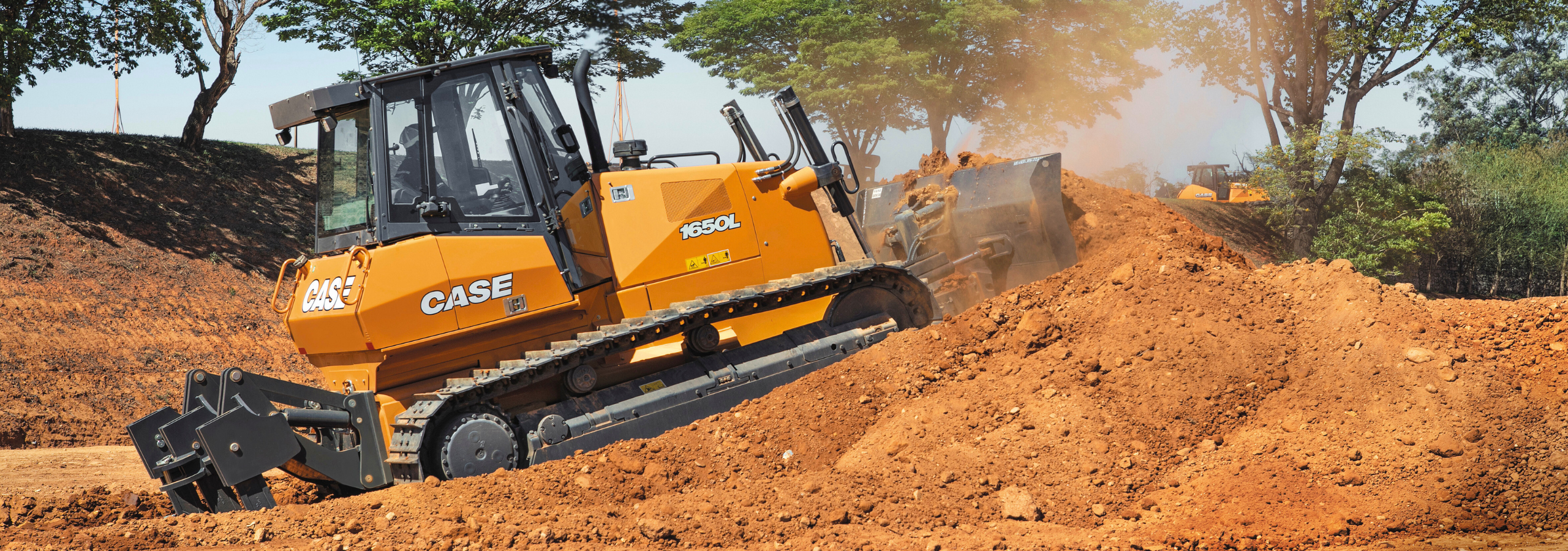

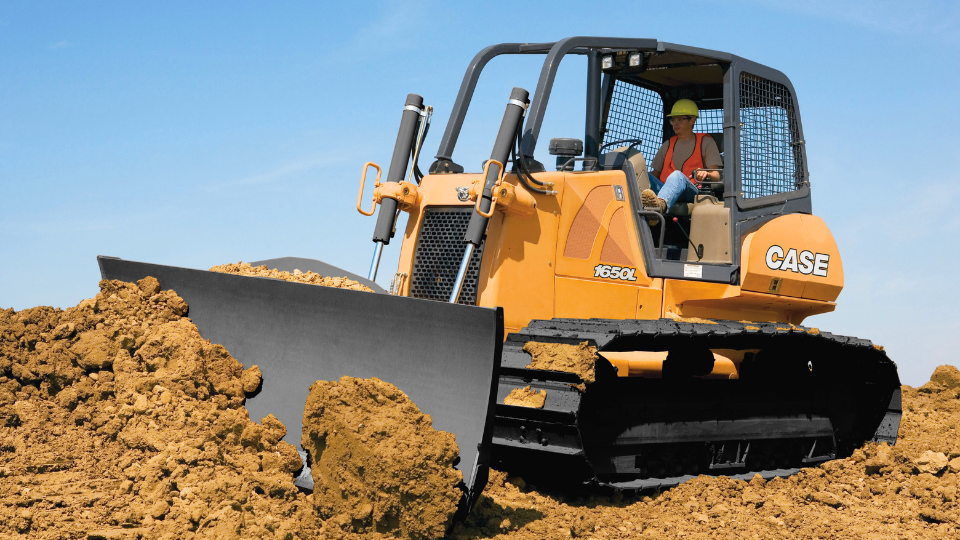

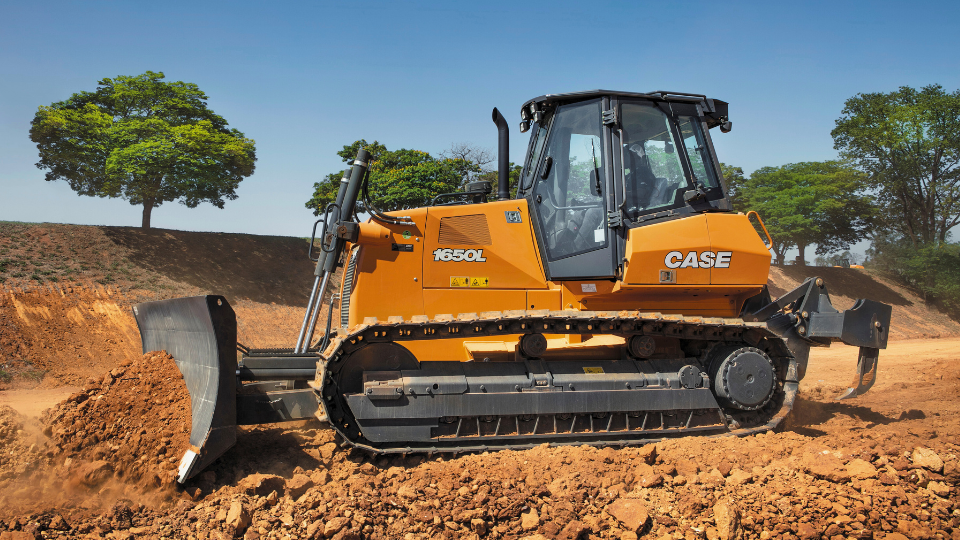

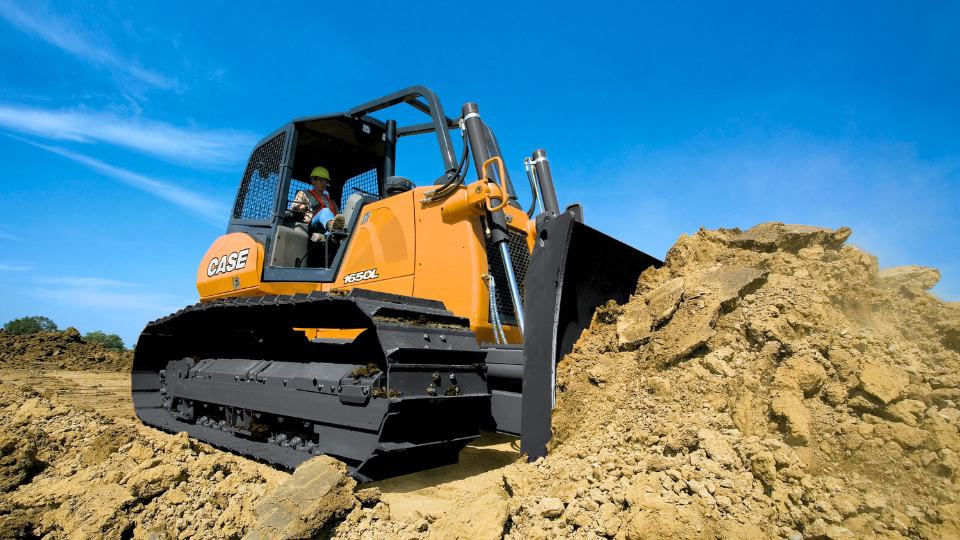

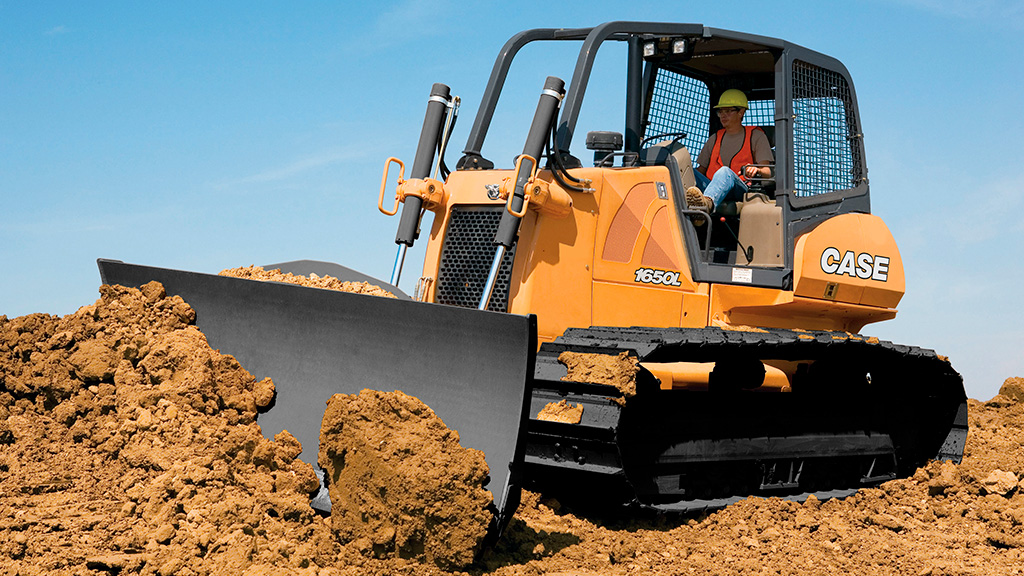

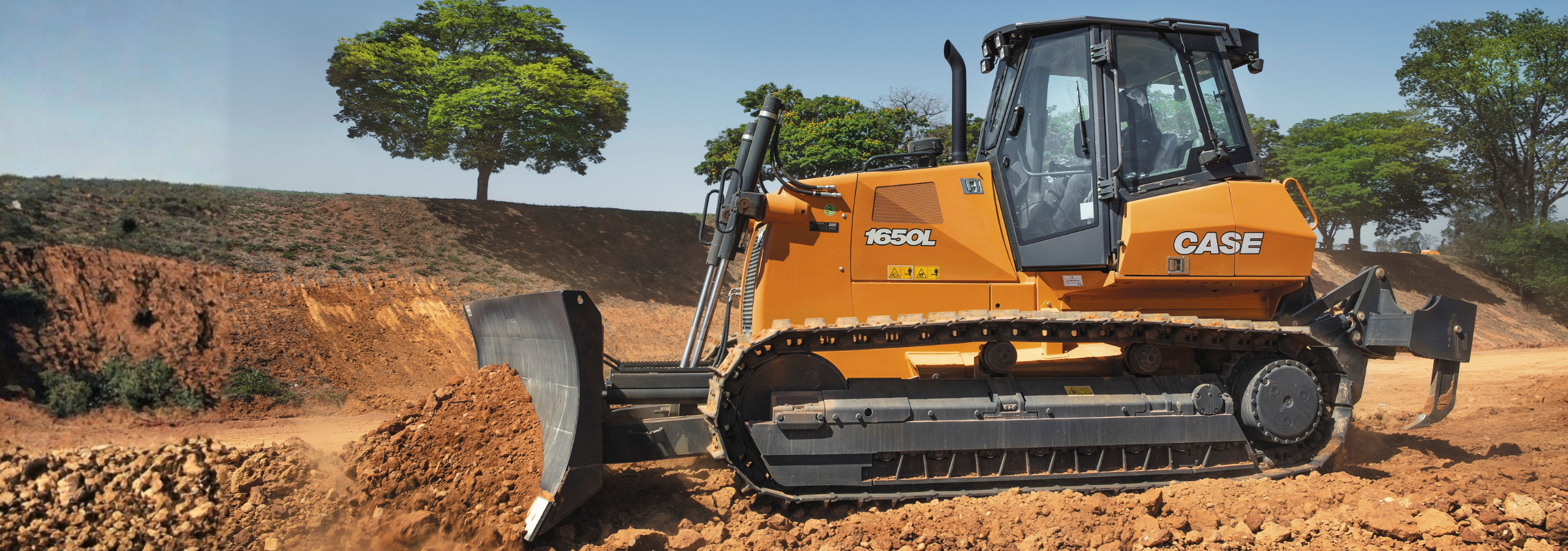

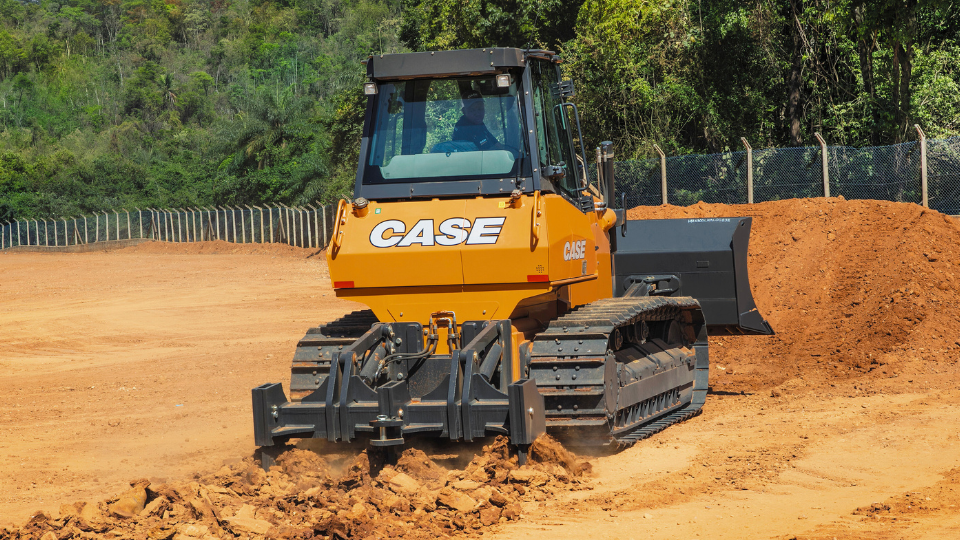

Used7CASE 1650L Crawler Dozer
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this dozer
This Case FPT Industrial Engine F4HE9684U is listed by AHS Group at NSW.
As listed, it has an operating weight of 17,960 kg.
AHS Group has not published a price for this dozer — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | FPT Industrial Engine F4HE9684U |
| Condition | Used |
| Name | 1650L |
| Model | FPT Industrial Engine F4HE9684U |
| Engine Displacement | 6.7 L |
| Cylinders | 6 |
| Emissions Certification | N/A |
| Fuel System | Direct common rail |
| Cooling Type | Liquid |
| Rated Engine Speed | 2,200 rpm |
| Gross Horsepower | 116 kW (155.6 hp) |
| Net Horsepower | 107 kW (143.5 hp) |
| Peak Torque | 690 Nm |
| Transmission Type | Single lever control electronic tracking |
| Steering Type | Hydrostatic |
| Max Drawbar Pull | 275 kN |
| Travel Speed – Forward | 9.7 km/h |
| Travel Speed – Reverse | 9.7 km/h |
| Alternator | 65 Amp |
| Battery | 2X12 V in series, maintenance free, 750 A CCA at -18° |
| Operating Weight | 17,960 kg |
| Height | 3,285 mm |
| Ground Clearance | 347 mm |
| Overall Length | 6,801 mm |
| Width over tracks | 3,200 mm |
| Pump flow | 132 L/min |
| Variable blade pitch - adjustable | 55° to 60° |
| Lift speed - per second | 483 mm |
| Cutting edge | Reversible, replaceble |
| Width | 200 mm |
| Length | 2,158 mm |
| Thickness | 19.1 mm |
| Location | NSW |
| Category | Dozers |
The CASE 1650L Crawler Dozer delivers 146 hp of FPT power with advanced hydrostatic control, a PAT blade and operator-focused design for unmatched precision and performance. Availa… Full description on the dealer's site →
