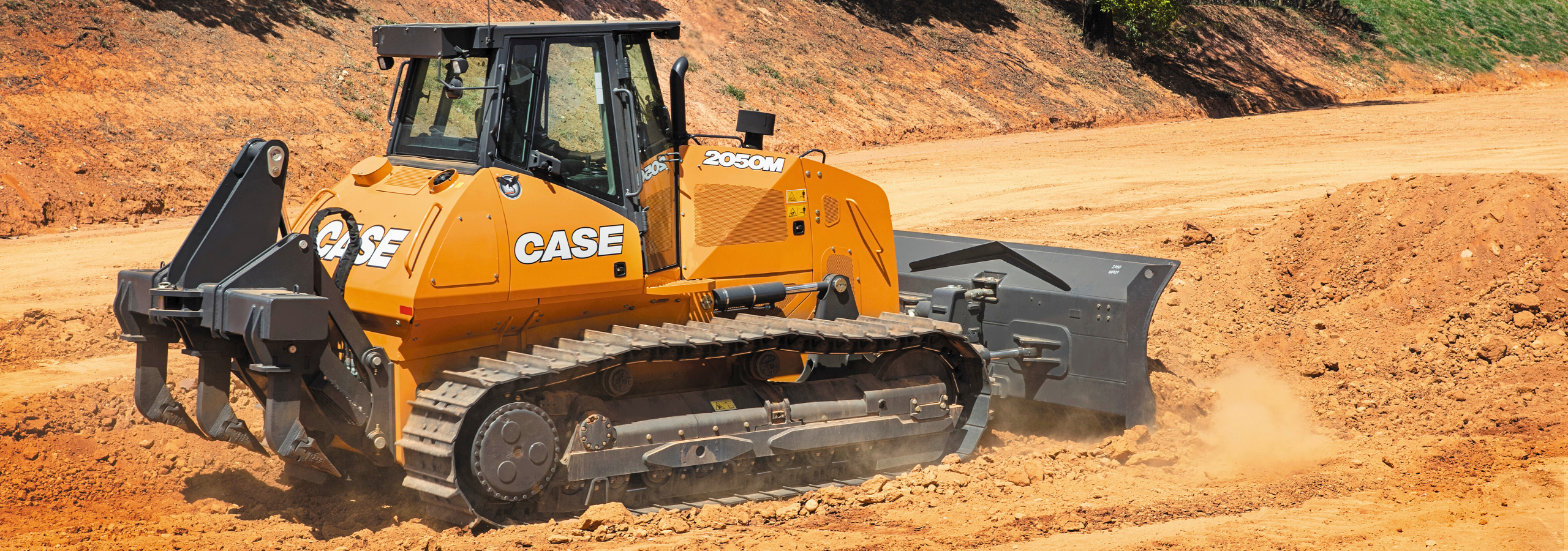

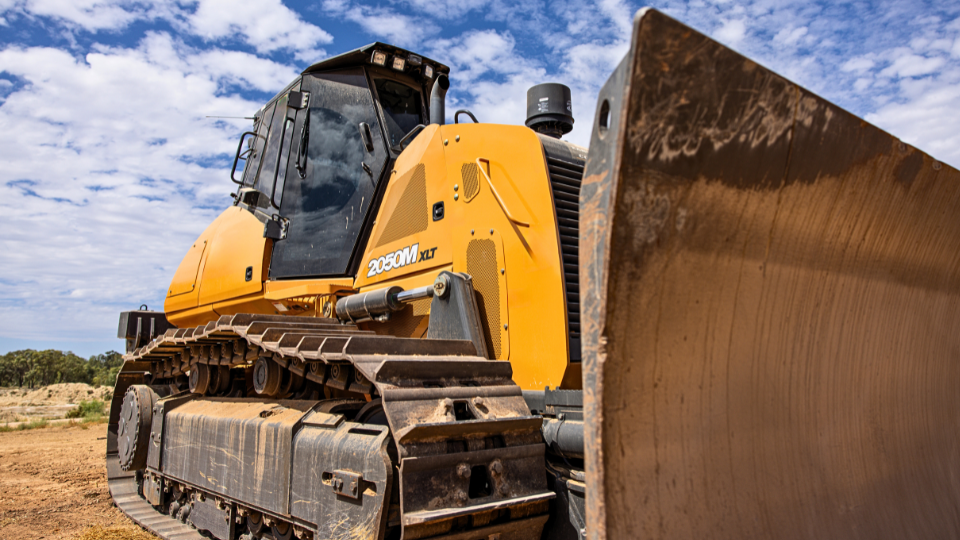

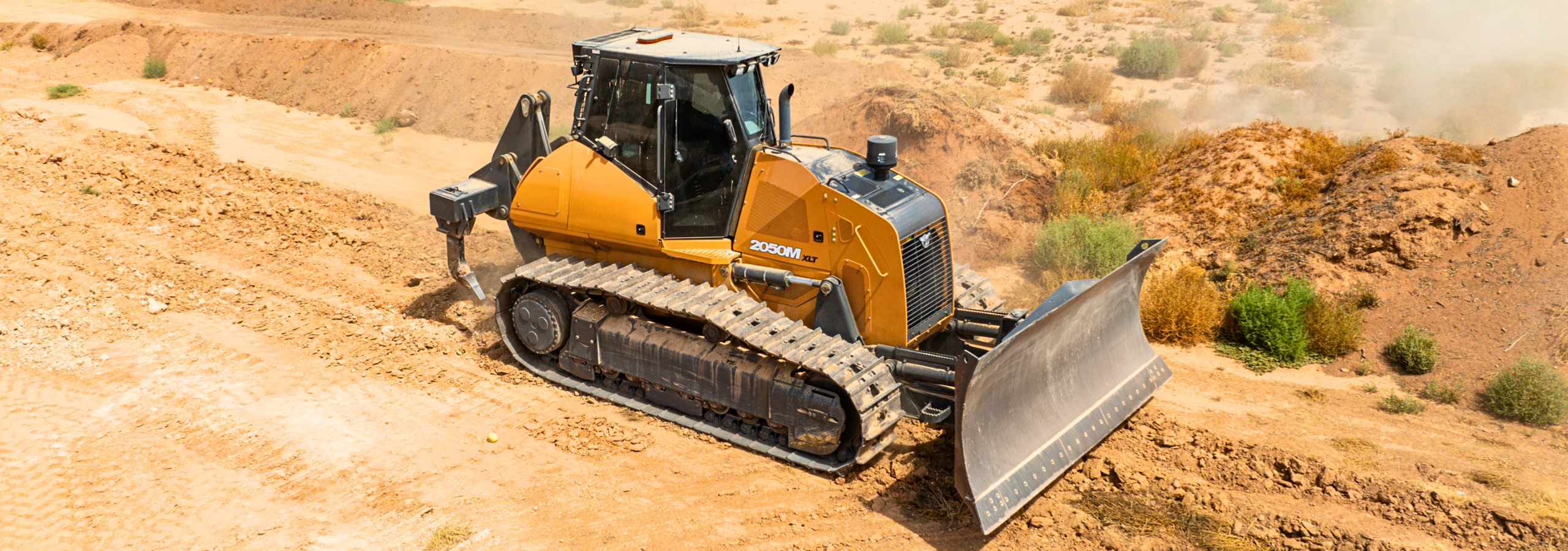

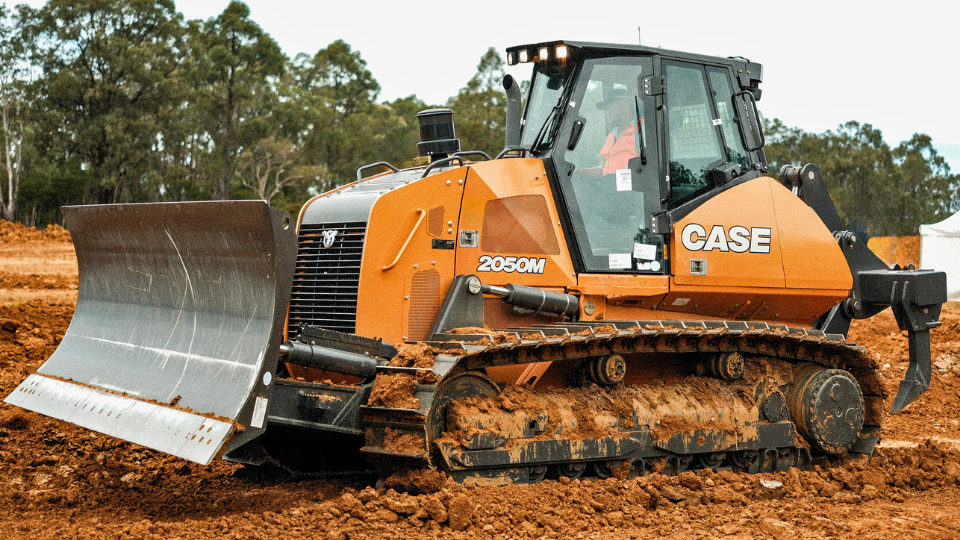

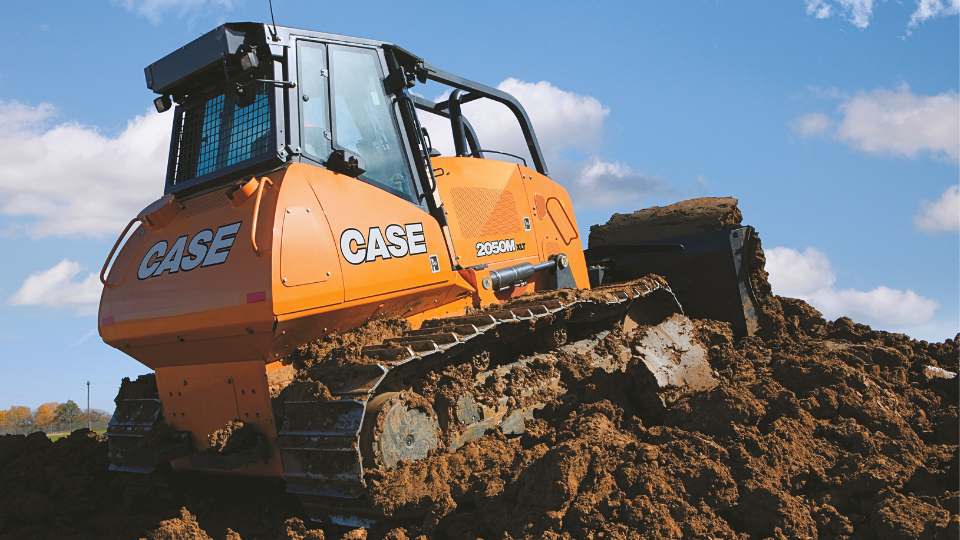

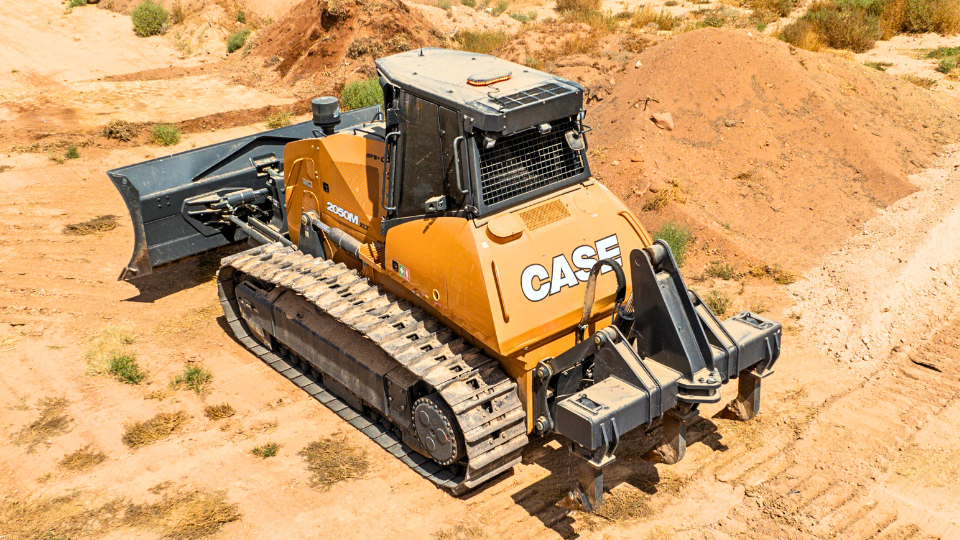

Used7CASE 2050M Crawler Dozer
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this dozer
A Case FPT Industrial Engine F4HE96848 offered by AHS Group in NSW.
As listed, it has an operating weight of 20,592 kg.
AHS Group has not published a price for this dozer — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | FPT Industrial Engine F4HE96848 |
| Condition | Used |
| Name | 2050M |
| Model | FPT Industrial Engine F4HE96848 |
| Engine Displacement | 6.7 L |
| Cylinders | 6 |
| Emissions Certification | Tier 3 |
| Fuel System | Common rail |
| Cooling Type | Liquid |
| Rated Engine Speed | 2,200 rpm |
| Gross Horsepower | 173 kW (232.0 hp) |
| Net Horsepower | 160 kW (214.6 hp) |
| Peak Torque | 1,082 Nm |
| Transmission Type | Dual path hydrostatic |
| Steering Type | Hydrostatic |
| Max Drawbar Pull | 360 kN |
| Travel Speed – Forward | 9.3 km/h |
| Travel Speed – Reverse | 9.3 km/h |
| Alternator | 120 Amp |
| Battery | (2) 12-volt, low-maintenance 925 cold-cranking amps @ -4° F (-20° C) |
| Operating Weight | 20,592 kg |
| Height | 3,103 mm |
| Ground Clearance | 362 mm |
| Overall Length | 7,383 mm |
| Width over tracks | 2,550 mm |
| Pump flow | 153 L/min |
| Blade Type | PAT |
| Blade Width | 3,569 nn |
| Blade Height | 1,369 mm |
| Blade Capacity (SAE) | 4.83 m³ |
| Blade Pitch Range | 55–60 ° |
| Max Blade Lift Above Ground | 1,130 mm |
| Max Blade Depth Below Ground | 539 mm |
| Blade Angle (L/R) | 28 ° |
| Location | NSW |
| Category | Dozers |
The CASE 2050M Crawler Dozer delivers 214 hp of FPT power, hydrostatic precision and unmatched durability for large scale earthmoving. Available from AHS Group with full parts, ser… Full description on the dealer's site →
