New2ISUZU GJ-4JJ1X CASE CX130C Excavator | 13 Tonne Power
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this excavator
A Case ISUZU GJ-4JJ1X offered by AHS Group in NSW.
As listed, it has an operating weight of 12,800 kg.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | ISUZU GJ-4JJ1X |
| Condition | Used |
| Name | CX130C |
| Model | ISUZU GJ-4JJ1X |
| Bore/Stroke | 95.4 × 104.9 mm |
| Displacement | 3 l |
| Horsepower | 73 kW (97.9 hp) |
| Maximum torque | 346 Nm @ 1500 min-¹ |
| Max oil flow | 2 × 129 l/min |
| Boom/Arm/Bucket circuit | 34.3 MPa |
| Boom/Arm/Bucket (with Power Boost) | 36.3 MPa |
| Swing circuit | 27.9 MPa |
| Travel circuit | 34.3 MPa |
| Maximum swing speed | 14.1 min-¹ |
| Swing torque | 33,000 Nm |
| Suction filter | 105 μm |
| Return filter | 6 μm |
| Pilot line filter | 8 μm |
| Travel motor | Variable displacement axial piston motor (automatic travel speed shifting) |
| Max travel speed | 5.6 km/h |
| Low travel speed | 3.4 km/h |
| Gradeability | 35° (70%) |
| Drawbar pull | 116 kN |
| Alternator | 50 Amp |
| Starter motor | 4 kW (5.4 hp) |
| Battery | 2 × 12 V 72 Ah / 5 HR |
| Number of track rollers (each side) | 7 |
| Number of shoes (each side) | 43 |
| Type of shoe | Triple grouser shoe |
| Fuel tank | 260 L |
| Hydraulic system | 157 L |
| Cooling system | 18.2 L |
| Engine Crank Case | 17 L |
| Operating Weight | 12,800 kg |
| Location | NSW |
| Category | Excavators |

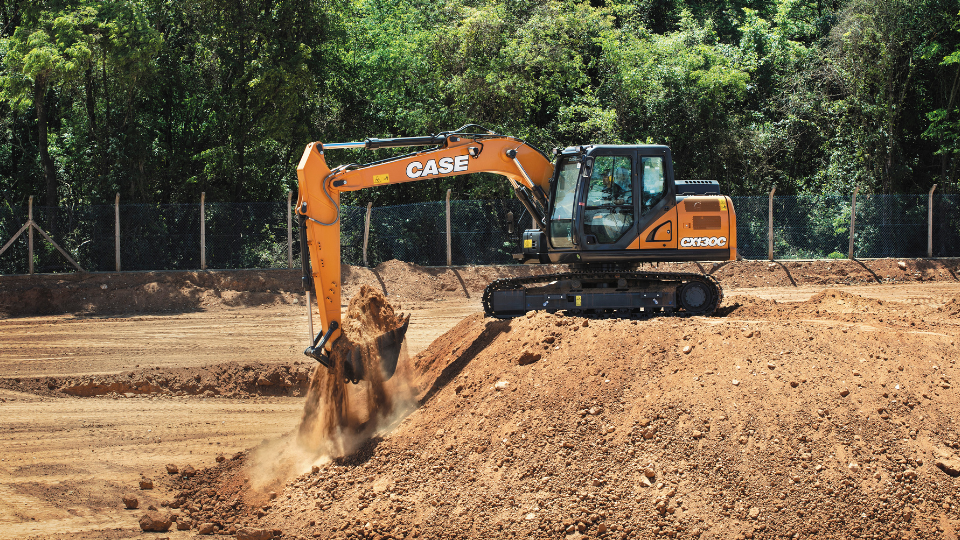

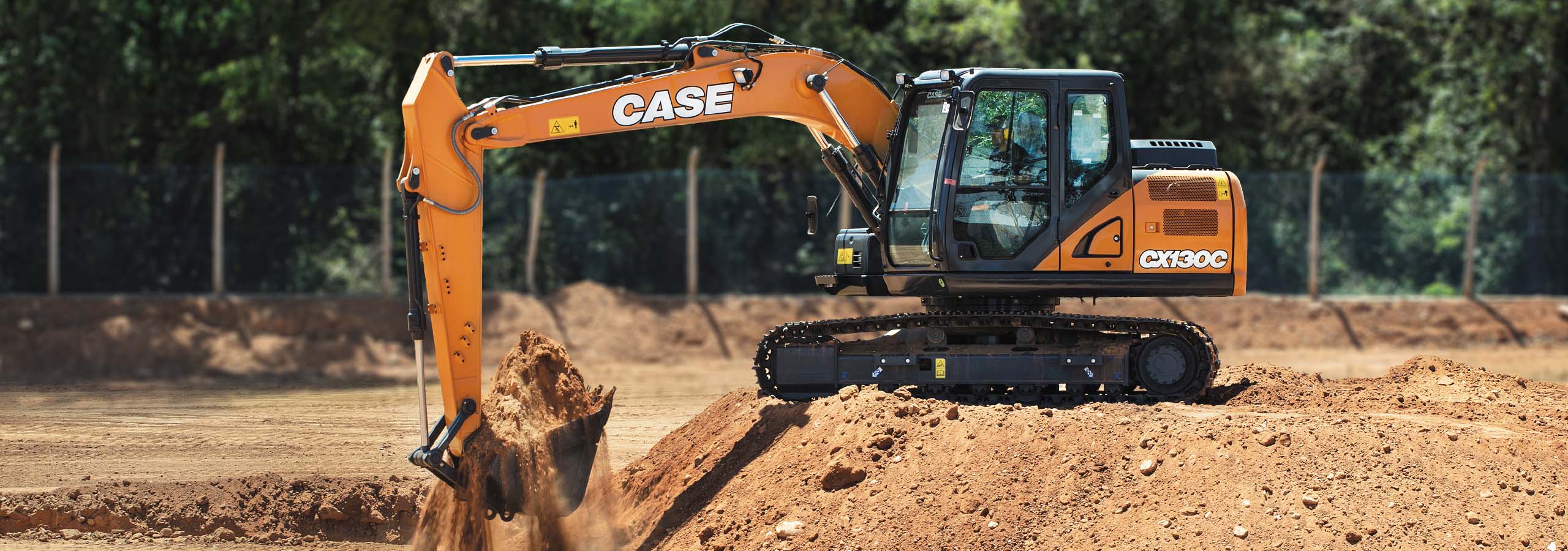

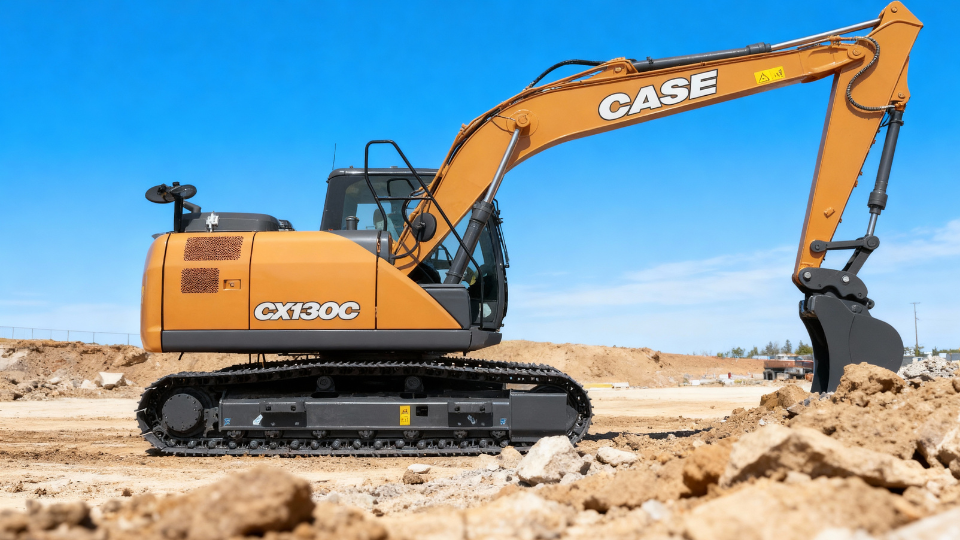

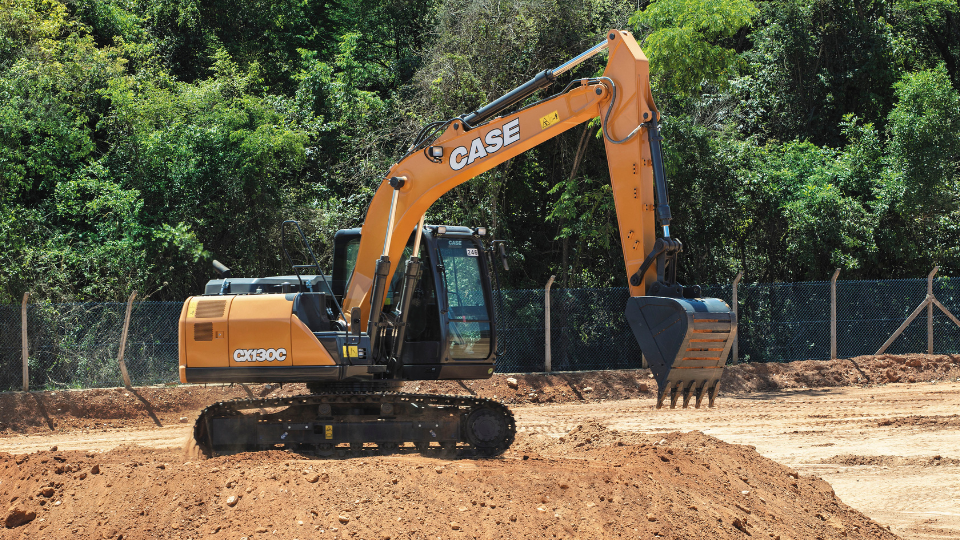

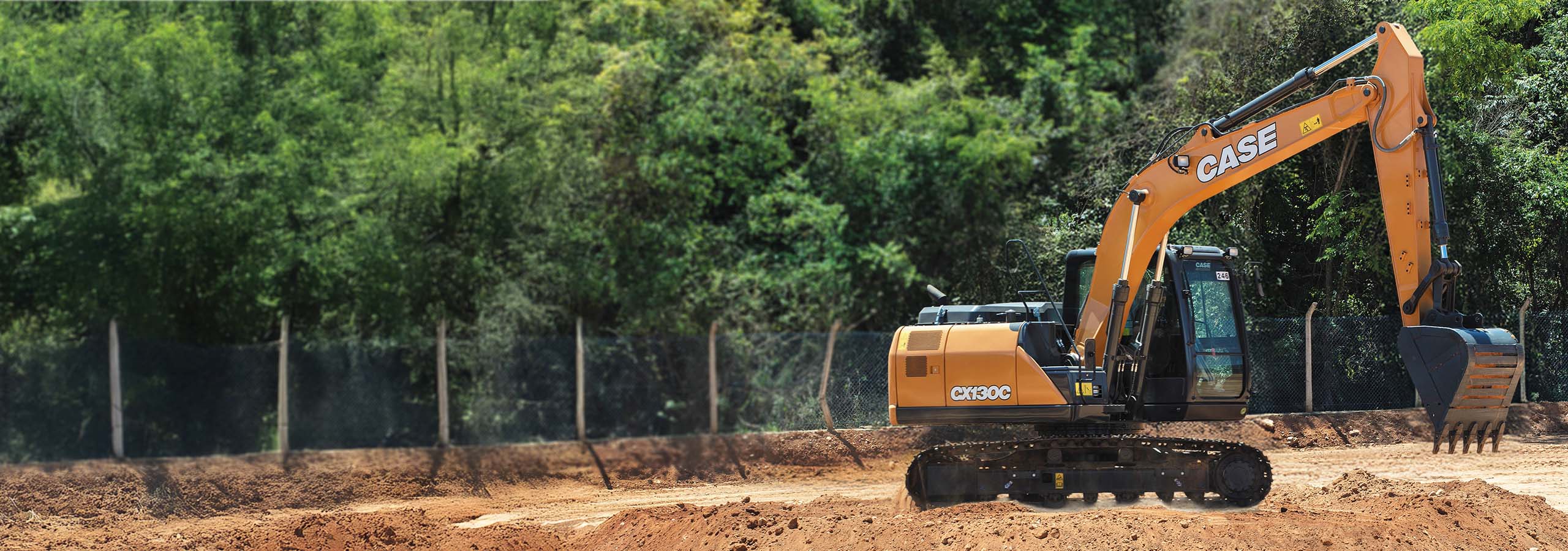

The CASE CX130C delivers strong digging power and refined hydraulic control in a compact 13-tonne design. Powered by a 3.0 L ISUZU engine with advanced fuel-saving technology, it o… Full description on the dealer's site →
