New2CASE CX25D Excavator
AHS Group·NSW
2 photos supplied by AHS Group and displayed from their website. See the original listing →
About this excavator

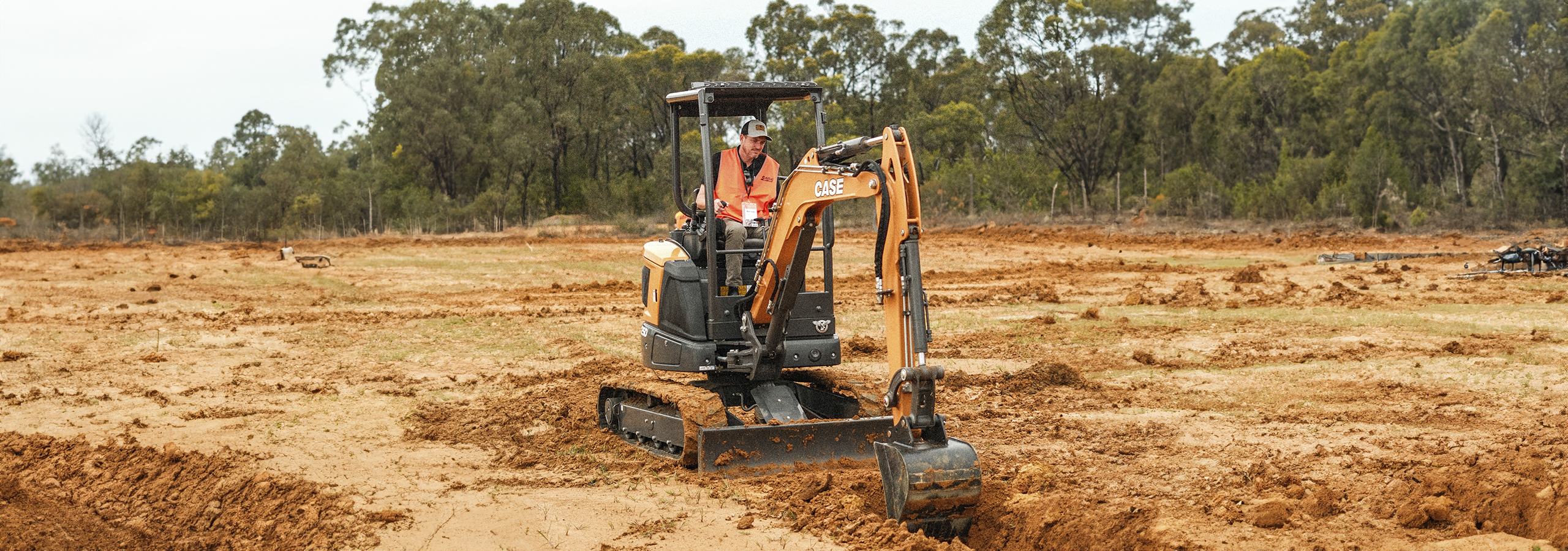

AHS Group has this Case CX25D Excavator available at NSW.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | CX25D Excavator |
| Condition | Used |
| Name | CASE CX25D |
| Type | YANMAR 3TNV76 - STAGE 5 |
| Max. Power | 18.4 HP |
| Displacement | 1,116 cm³ |
| Number of cylinders | 3 n° |
| Cooling | Liquid |
| Consumption | 3 l/h |
| Alternator | 12 V |
| Battery | 12 V |
| Pump type | Variable displacement |
| Pump displacement | 2 x 13 + 8.3 cm³ |
| Pump capacity | 2 x 28.5 + 18 l/min |
| Max circuit calibration pressure bar | 230 |
| Auxiliary system (max pressure): AUX 1 | single or double effect 50 - 200/250 l/min (bar) |
| Auxiliary system (max pressure): AUX 2 | optional 12/8 - 250 l/min (bar) |
| Auxiliary system (max pressure): AUX 3 | optional 29/22 - 250 l/min (bar) |
| Circuit Type | LS closed center system with Flow Sharing distributor |
| Travelling speed (AUTO TWO SPEED) | 1st : 0 ÷ 2.6 / 2nd : 0 ÷ 4.3 km/h |
| Slew speed | 20 RPM |
| Dozer blade | Pilot lever |
| Auxiliary system: AUX 1 | electroproportional switch on right joystick |
| Auxiliary system: AUX 2 | - |
| Boom swing | electroproportional switch on left joystick |
| Transport weight with canopy | 2,450 kg |
| Transport weight with cab | 2,580 Kg |
| Operating weight with canopy | 2,580 Kg |
| Operating weight with cab | 2,710 Kg |
| Fuel tank | 26 Litres |
| Hydraulic oil tank | 29 Litres |
| Hydraulic circuit capacity | 40 Litres |
| Cooling system capacity | 5 Litres |
| Engine oil | 2.8 Litres |
| Location | NSW |
| Category | Excavators |
Learn more about the CASE CX17D Mini Excavator at AHS Group. Featuring a 16.1 hp engine, 2,220 mm digging depth, and an extendable undercarriage (990 mm to 1,250 mm), this D-Series… Full description on the dealer's site →
