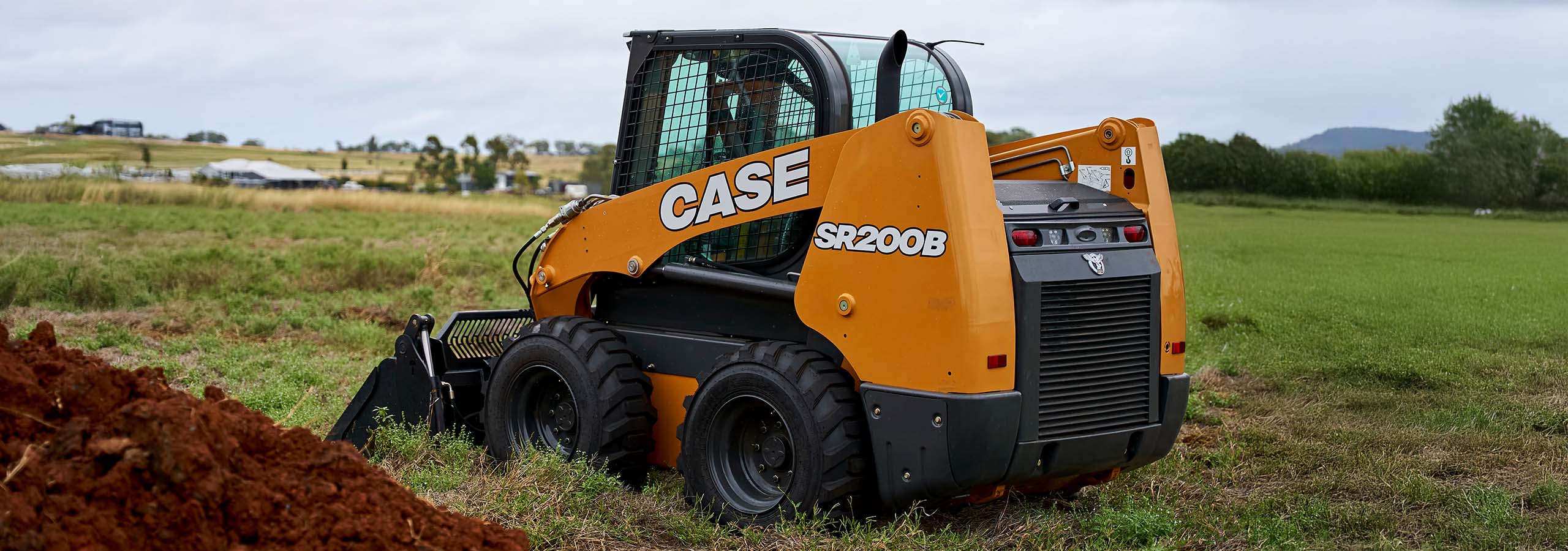

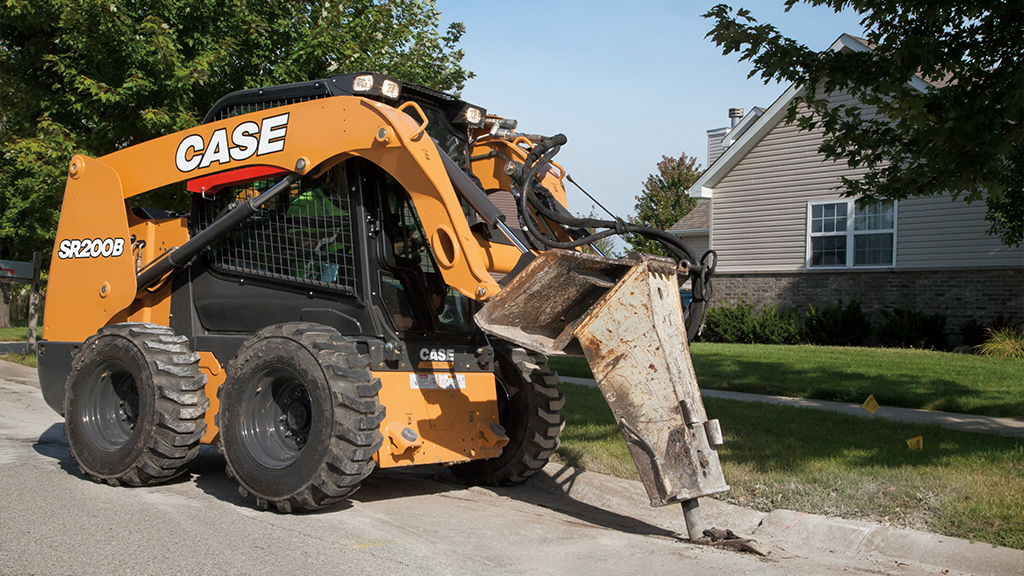

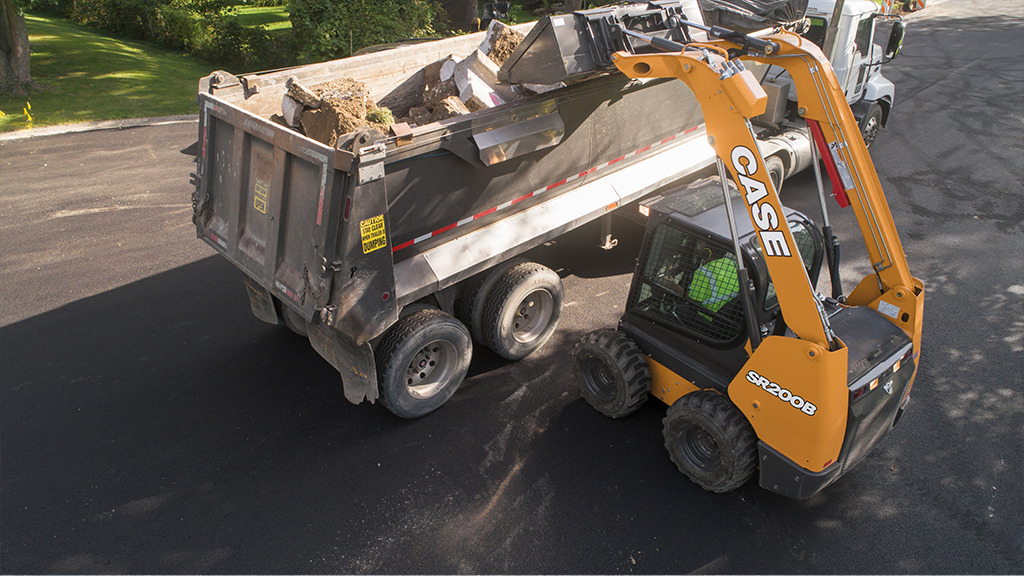

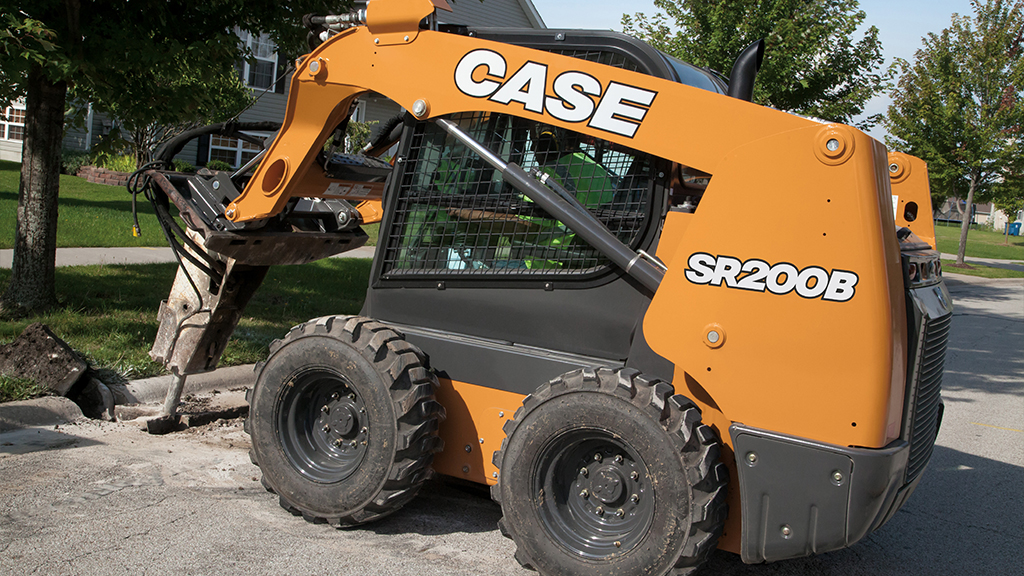

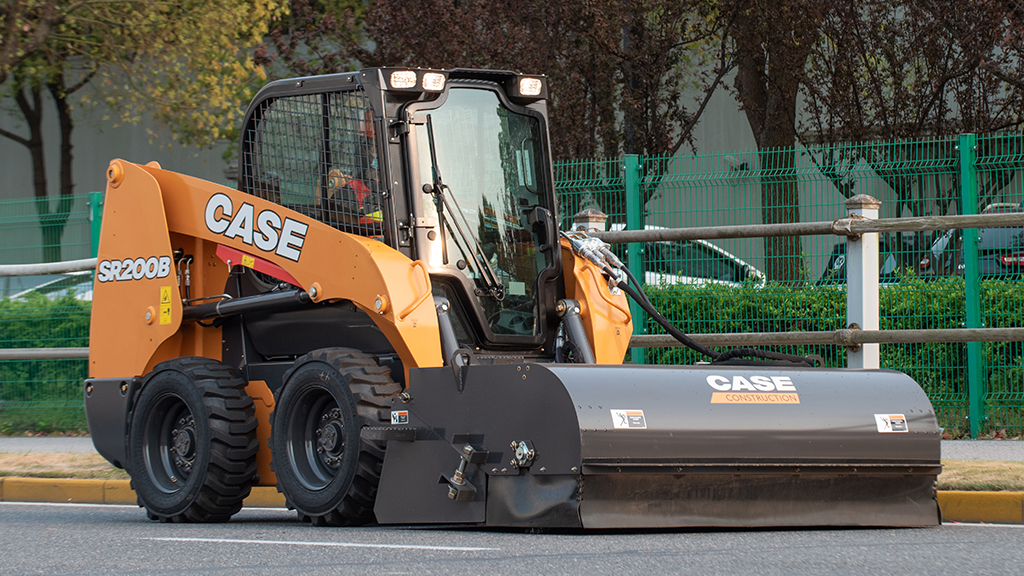

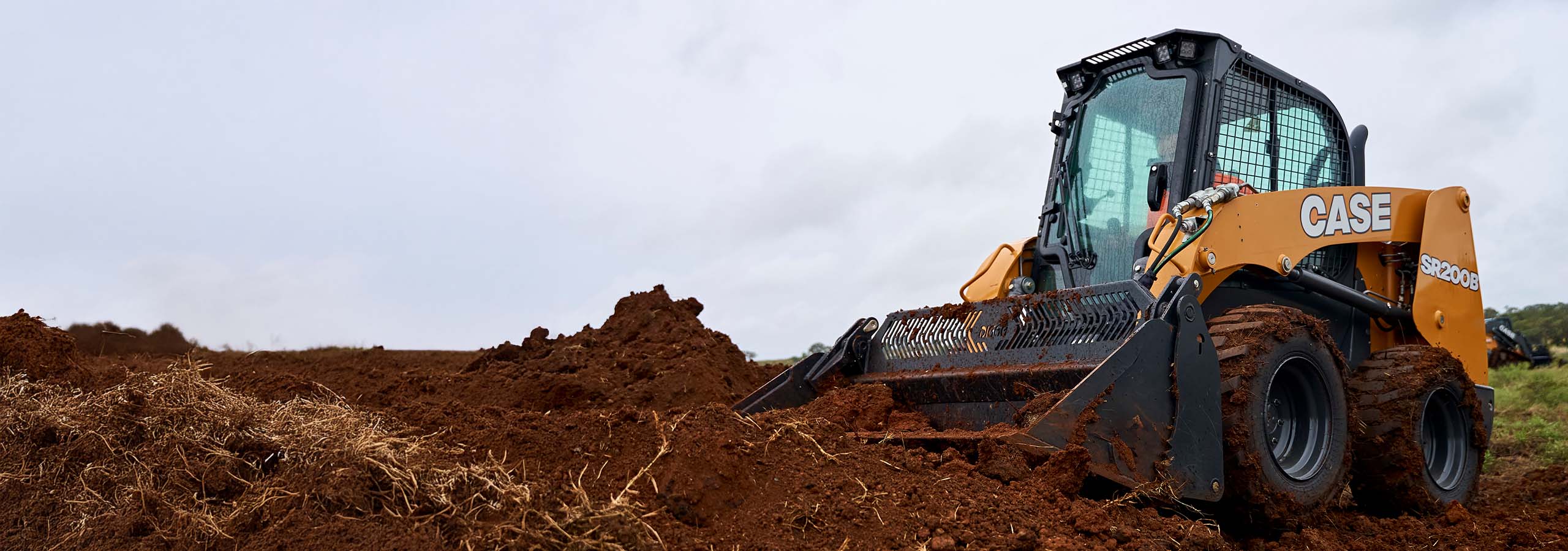

Used7FPT CASE SR200B Skid Steer Loader
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this skid steer
A FPT F5C E5454 G*A001 offered by AHS Group in NSW.
As listed, it has an operating weight of 3,184 kg.
AHS Group has not published a price for this skid steer — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | FPT |
| Model | F5C E5454 G*A001 |
| Condition | Used |
| Name | SR200B |
| Overall Height w/ LPE Bkt | 4,146 mm |
| Bucket Hinge Pin | 3,124 mm |
| Top Of ROPS | 1,998 mm |
| Bottom of Bkt Fully Raised | 2,950 mm |
| Length w/o Attachment | 2,669 mm |
| Length w/ LPE Bkt | 3,525 mm |
| Dump Angle | 39.6 ° |
| Dump Height w/ LPE Bkt | 2,347 mm |
| Dump Reach w/ LPE Bkt | 696 mm |
| Max Rollback at Ground | 31 ° |
| Max Rollback Fully Raised | 98.6 ° |
| Wheelbase | 1,128 mm |
| Ground Clearance | 203 mm |
| Angle of Departure | 25 ° |
| Rear Axle to Bumper | 924 mm |
| Overall Width (Spec Tyre) | 1,755 mm |
| Rated Operating Capacity 50% | 905 kg |
| Tipping Load | 1,814 kg |
| Lift Cylinder Breakout Force | 20.3 kN |
| Bucket Cylinder Breakout Force | 32.3 kN |
| Engine Brand | FPT |
| Engine Model | F5C E5454 G*A001 |
| Displacement | 34.1 cc |
| Horsepower Gross | 55 kW (73.8 hp) |
| Peak torque | 275 N·m |
| Low Range | 10.9 Km/h |
| High Range (Optional) | 15.9 Km/h |
| Pump flow 100% | 85 Lpm |
| Operating Weight | 3,184 kg |
| Shipping Weight | 3,025 kg |
| Fuel Tank | 75.7 L |
| Location | NSW |
| Category | Skid Steers |
Learn more about the CASE SR200B radial lift skid steer loader. Featuring a powerful 55 kW engine, a 905-kg operating capacity and a massive 32.3 kN bucket breakout force. Full description on the dealer's site →
