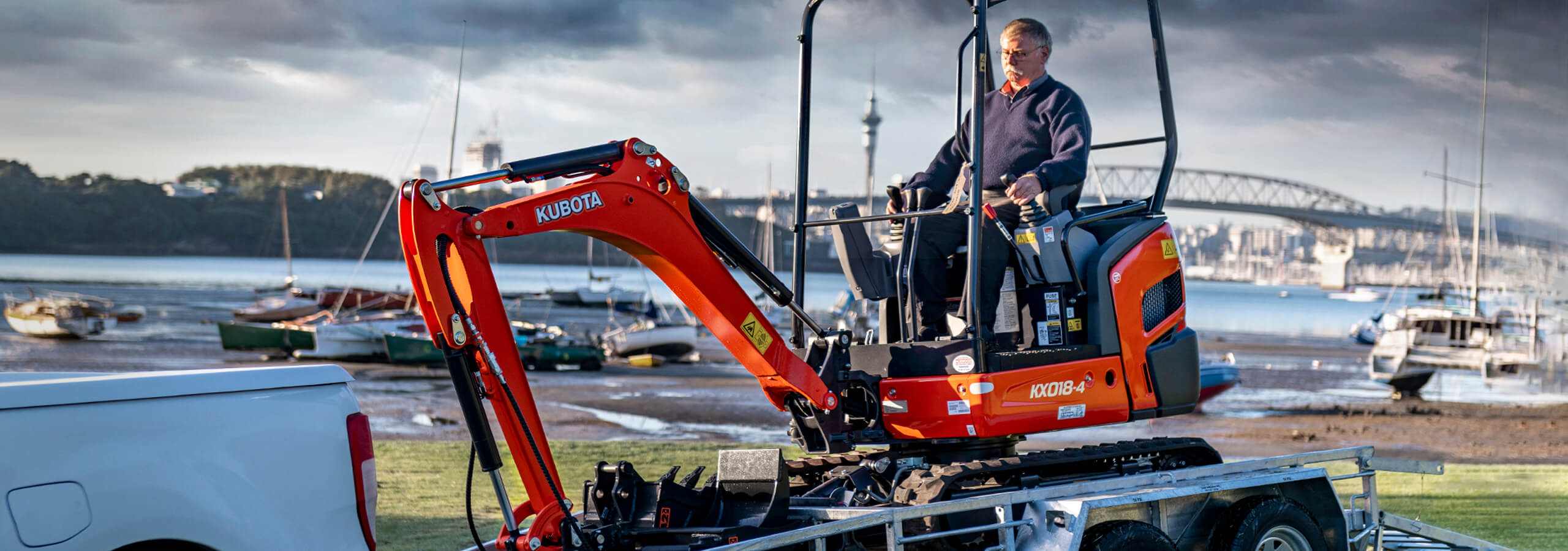

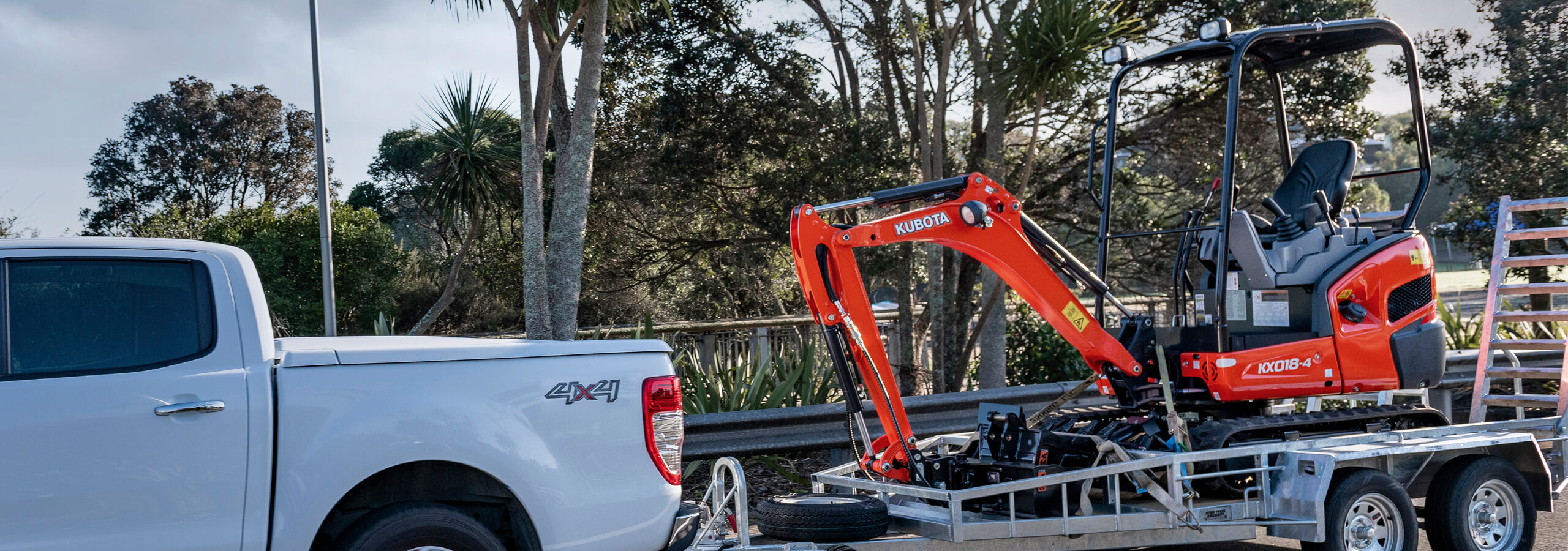

Used9Kubota KX018-4 Mini Excavator | High Performance

About this excavator
A Kubota Kubota D902-E4 offered by AHS Group in NSW.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Kubota |
| Model | Kubota D902-E4 |
| Condition | Used |
| Name | KX018-4 |
| Engine Type | Tier 4 Compliant |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Model | Kubota D902-E4 |
| Engine Net | 15.5 HP |
| Engine Gross | 16.1 HP |
| Displacement | 898 cc |
| Rated Speed | 2,300 rpm |
| Max. Traction Force | 2,207 kgf |
| Tumbler Distance | 1,230 mm |
| Crawler Length | 1,585 mm |
| Shoe Width | 230 mm |
| Hydraulic Pump Capacity | 17.3 x 2 / 10.4 x 1 / 6.2 x 1 l/min |
| Aux Hydraulic Flow - AUX1 | 27.7 l/min |
| Max. Breakout Force - Bucket | 1,630 kgf |
| Max. Breakout Force - Arm | 840 kgf |
| Swing System | Conventional Swing |
| Unit Swing Speed | 9.1 rpm |
| Boom Swing Angle Left | 75 degree |
| Boom Swing Angle Right | 60 degree |
| Low | 2.2 km/h |
| High | 4 km/h |
| Length | 3,710 mm |
| Width | 990 mm |
| Max. Width | 1,300 mm |
| Height - Canopy | 2,330 mm |
| Min. Ground Clearance | 160 mm |
| Operating Weight - Canopy | 1,695 kg |
| Min. Blade Width | 990 mm |
| Max. Blade Width | 1,300 mm |
| Blade Height | 230 mm |
| Max. Lift Above Ground | 230 mm |
| Max. Drop Below Ground | 230 mm |
| Fuel Reservoir | 21 l |
| Hydraulic Oil Reservoir | 15.5 l |
| Hydraulic Oil System | 28 l |
| Engine Oil | 2.6 l |
| Operator Station | Canopy |
| Noise At Operators Ear | 78 db |
| Max. Digging Height | 3,460 mm |
| Max. Dumping Height | 2,380 mm |
| Max. Digging Depth | 2,380 mm |
| Max. Vertical Digging Depth | 2,030 mm |
| Max. Digging Radius At Ground | 3,860 mm |
| Max. Digging Radius | 3,920 mm |
| Min. Turning Radius - w/o Swing | 1,480 mm |
| Min. Turning Radius - Swing | 1,170 mm |
| Min. Tail Turning Radius | 1,070 mm |
| Location | NSW |
| Category | Excavators |
The Kubota KX018-4 mini excavator delivers power and versatility for excavation projects. Check out this compact excavator for sale in Australia. Full description on the dealer's site →
