Used9Kubota U27-4 Mini Excavator | High Performance

About this excavator
This Kubota Kubota D1105-BH is listed by AHS Group at NSW.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Kubota |
| Model | Kubota D1105-BH |
| Condition | Used |
| Name | U27-4 |
| Engine Type | Tier 4 Compliant |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Model | Kubota D1105-BH |
| Engine Net | 20 HP |
| Engine Gross | 20.9 HP |
| Displacement | 1,123 cc |
| Rated Speed | 2,400 rpm |
| Max. Traction Force | 3,069 kgf |
| Tumbler Distance | 1,560 mm |
| Crawler Length | 1,990 mm |
| Shoe Width | 300 mm |
| Ground Contact Pressure (Per cm2) | 0.23 kgf |
| Hydraulic Pump Capacity | 28.8 variable x2 / 19.2 Gear x1 l/min |
| Aux Hydraulic Flow - AUX1 | 48 l/min |
| Aux Hydraulic Flow - AUX2 | 19.2 l/min |
| Max. Breakout Force - Bucket | 2,645 kgf |
| Max. Breakout Force - Arm | 1,260 kgf |
| Swing System | Zero Tail Swing |
| Unit Swing Speed | 9.9 rpm |
| Boom Swing Angle Left | 75 degree |
| Boom Swing Angle Right | 55 degree |
| Low | 2.6 km/h |
| High | 4.3 km/h |
| Length | 4,100 mm |
| Width | 1,500 mm |
| Height - Canopy | 2,420 mm |
| Min. Ground Clearance | 307 mm |
| Operating Weight - Canopy | 2,570 kg |
| Blade Width | 1,500 mm |
| Blade Height | 300 mm |
| Max. Lift Above Ground | 360 mm |
| Max. Drop Below Ground | 320 mm |
| Fuel Reservoir | 33 l |
| Hydraulic Oil Reservoir | 22 l |
| Hydraulic Oil System | 37 l |
| Engine Oil | 3.6 l |
| Operator Station | Canopy |
| Max. Digging Height | 4,370 mm |
| Max. Dumping Height | 3,100 mm |
| Max. Digging Depth | 2,820 mm |
| Max. Vertical Digging Depth | 2,580 mm |
| Max. Digging Radius At Ground | 4,630 mm |
| Max. Digging Radius | 4,740 mm |
| Min. Turning Radius - w/o Swing | 1,970 mm |
| Min. Turning Radius - Swing | 1,539 mm |
| Min. Tail Turning Radius | 790 mm |
| Location | NSW |
| Category | Excavators |

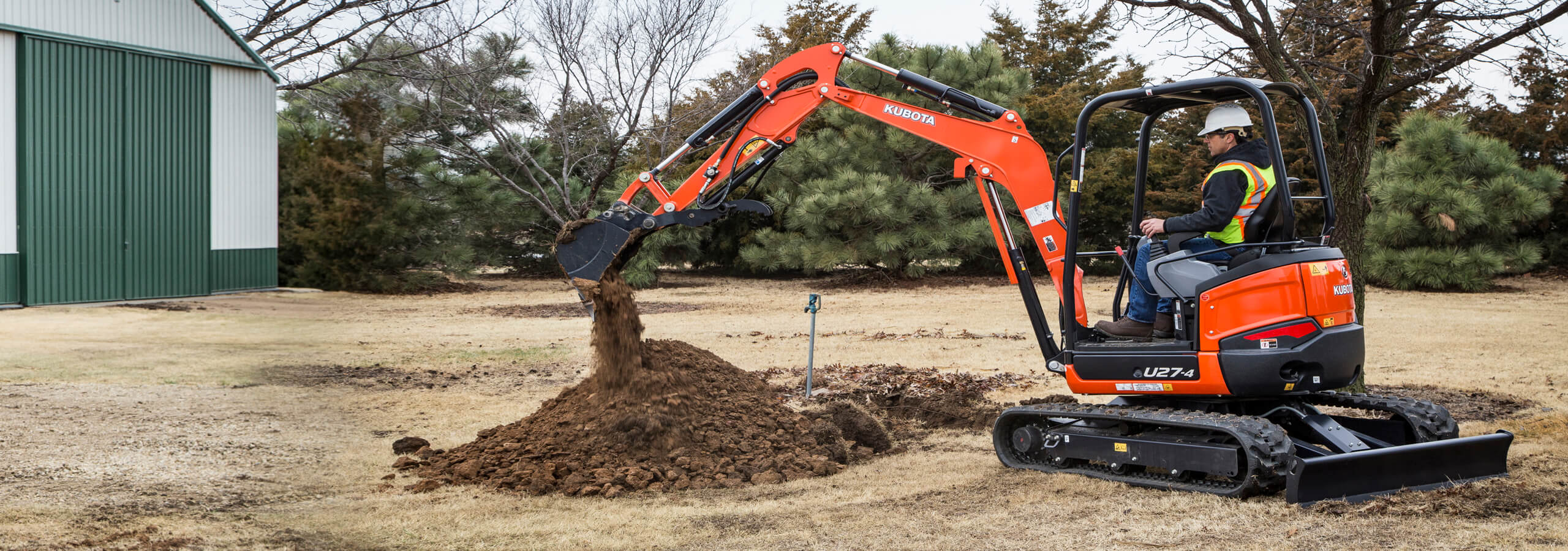

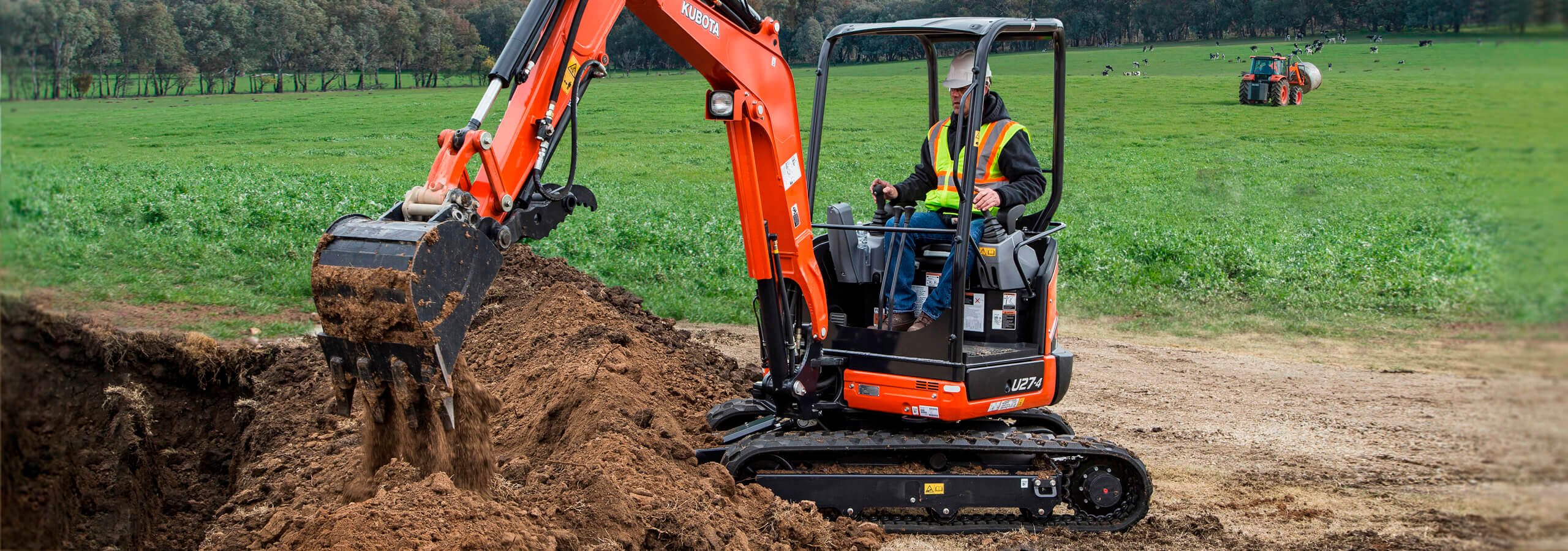

Discover the Kubota U27-4 mini excavator, built for precision and power in tight spaces. Check out this compact excavator for sale in Australia. Full description on the dealer's site →
