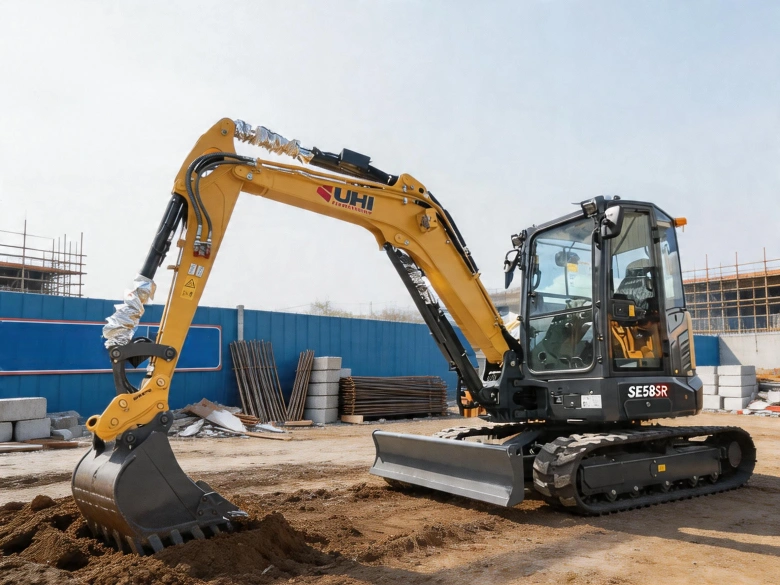

KUBOTA V2607T SE58SR Excavator from UHI, (SE58SR) - UHI Machinery Aus
UHI Machinery·VIC·Stock SE58
12 photos supplied by UHI Machinery and displayed from their website. See the original listing →
About this excavator
UHI Machinery has this SE58SR Kubota V2607T available at VIC.
Full photos, the dealer's own description and any additional detail are on UHI Machinery's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | SE58SR |
| Model | Kubota V2607T |
| Condition | Used |
| Package | Choose an option Standard Package Tilt Quick Hitch Package Clear |
| Operating weight | 5,850 kg |
| Ground pressure | 32.5 kPa |
| Engine model | Kubota V2607T |
| Engine type | Four-cylinder, water-cooled, direct injection, turbocharged |
| Number of cylinders | 4 |
| Emission standard | Tier 3 |
| Displacement | 2.615 L |
| Rated power | 35 kW / 2,200 rpm |
| Hydraulic pump type | Axial variable plunger pump |
| Rated operating flow | 158.4 L/min |
| Bucket digging force | 42.3 kN |
| Arm digging force | 26.9 kN |
| Bucket type | Digging bucket |
| Bucket capacity | 0.18 m³ |
| Bucket width | 600 mm |
| Travel motor type | Axial variable plunger motor |
| Track rollers | 5 × 2 |
| Carrier rollers | 1 × 2 |
| Travel speed | 2.5 / 4.2 km/h |
| Traction force | 70 |
| Gradeability | 30° |
| Swing motor type | Swash plate plunger motor |
| Swing speed | 0–9.8 rpm |
| Swing brake type | Pressure release, mechanical braking |
| Fuel tank | 66 L |
| Cooling system | 10.4 L |
| Engine oil | 10 L |
| Hydraulic oil tank | 45 L |
| Hydraulic system capacity | 90 L |
| Boom length | 2,780 mm |
| Arm length | 1,635 mm |
| Maximum digging height | 5,680 mm |
| Maximum dumping height | 4,020 mm |
| Maximum digging depth | 3,625 mm |
| Maximum vertical digging depth | 2,880 mm |
| Digging depth for 2,500 mm level bottom | 3,215 mm |
| Maximum digging distance | 6,130 mm |
| Minimum work-equipment swing radius | 2,440 mm |
| Overall length | 5,415 mm |
| Ground contact length | 3,375 mm |
| Height to top of boom | 1,895 mm |
| Overall width | 1,960 mm |
| Height to top of cab | 2,550 mm |
| Counterweight ground clearance | 635 mm |
| Minimum ground clearance | 315 mm |
| Tail swing radius | 1,065 mm |
| Tread | 1,990 mm |
| Track length | 2,500 mm |
| Track gauge | 1,560 mm |
| Track width | 1,960 mm |
| Shoe width | 400 mm |
| Bonnet height | 1,655 mm |
| Revolving frame width | 1,830 mm |
| Swivel centre to tail | 1,065 mm |
| Stock number | SE58 |
| Location | VIC |
| Category | Excavators |
Discover the UHI SE58SR 5.8 Ton Excavator with a 47HP Kubota engine, Zero Swing design, 5 attachments, 3 Year Warranty and finance available. Full description on the dealer's site →
