Used12YANMAR 4TNV98 UME80 Excavator from UHI, (UME80) - UHI Machinery Aus

About this excavator
This UME80 Yanmar 4TNV98 is listed by UHI Machinery at VIC.
Full photos, the dealer's own description and any additional detail are on UHI Machinery's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.

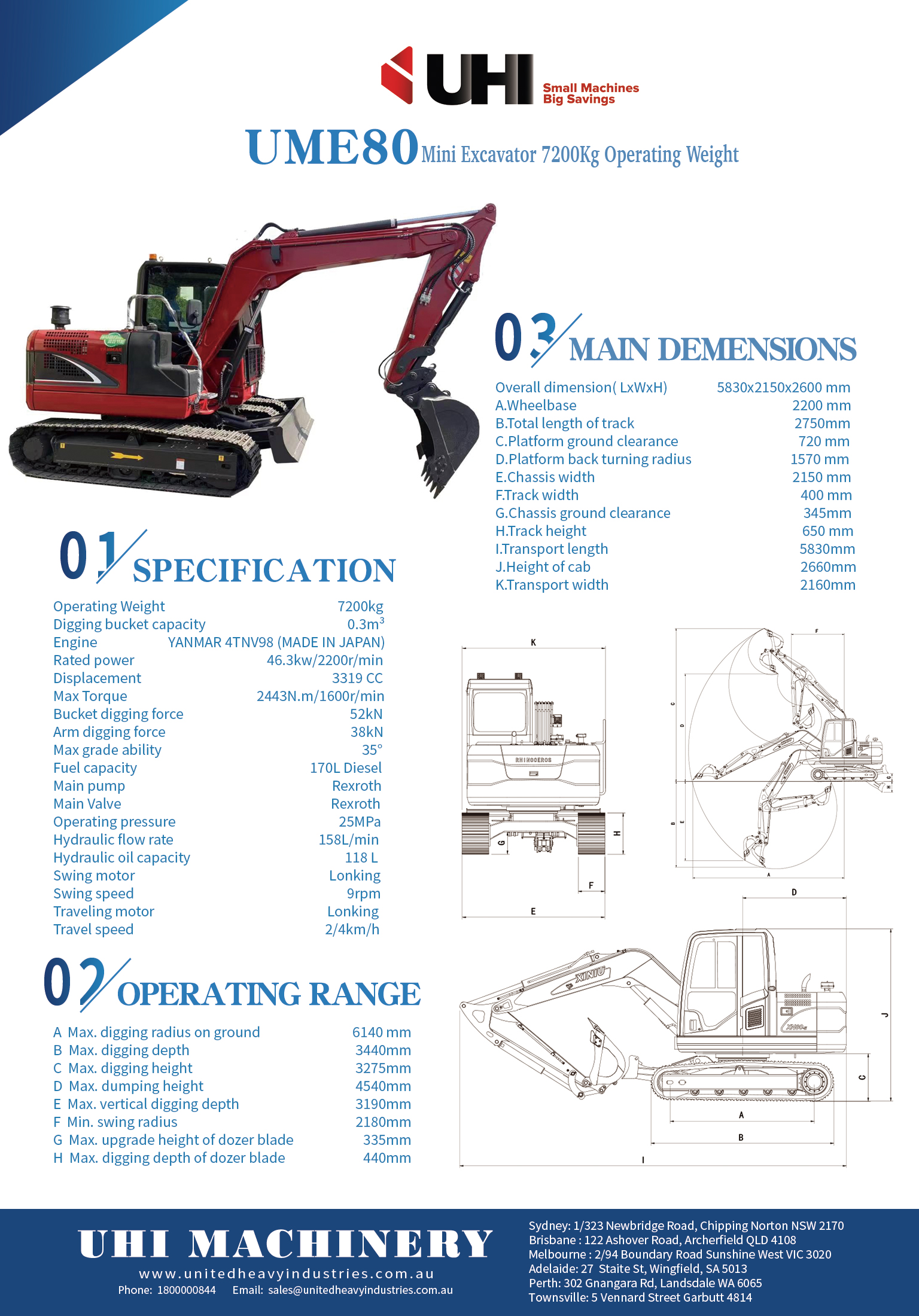

Specifications
| Make | UME80 |
| Model | Yanmar 4TNV98 |
| Condition | New |
| Operating weight | 7,200 kg |
| Bucket capacity | 0.30 m³ |
| Engine model | Yanmar 4TNV98 |
| Displacement | 3.319 L |
| Rated power | 44.4 kW / 2,200 rpm |
| Maximum torque | 244.3 Nm / 1,600 rpm |
| Travel speed | 2 / 4 km/h |
| Swing speed | 9 rpm |
| Maximum gradeability | 35° |
| Main pump | Rexroth |
| Main valve | Rexroth |
| Hydraulic flow | 158 L/min |
| Operating pressure | 25 MPa |
| Hydraulic oil capacity | 118 L |
| Fuel tank capacity | 170 L diesel |
| Bucket digging force | 52 kN |
| Arm digging force | 38 kN |
| Travel motor | Lonking |
| Swing motor | Lonking |
| Ground-level digging radius | 6,140 mm |
| Maximum digging depth | 3,440 mm |
| Maximum digging height | 3,275 mm |
| Maximum dumping height | 4,540 mm |
| Maximum vertical digging depth | 3,190 mm |
| Minimum swing radius | 2,180 mm |
| Maximum blade lifting height | 335 mm |
| Maximum blade digging depth | 440 mm |
| Overall dimensions | 5,830 × 2,150 × 2,600 mm |
| Wheelbase | 2,200 mm |
| Total track length | 2,750 mm |
| Platform ground clearance | 720 mm |
| Platform rear turning radius | 1,570 mm |
| Chassis width | 2,150 mm |
| Track width | 400 mm |
| Chassis ground clearance | 345 mm |
| Track height | 650 mm |
| Transport length | 5,830 mm |
| Cab height | 2,660 mm |
| Transport width | 2,160 mm |
| Stock number | ume80 |
| Location | VIC |
| Category | Excavators |
Discover the UHI UME80 7.2 Ton Excavator with a 60HP Yanmar engine, air-conditioned cabin, 5 attachments, 3 Year Warranty Full description on the dealer's site →
